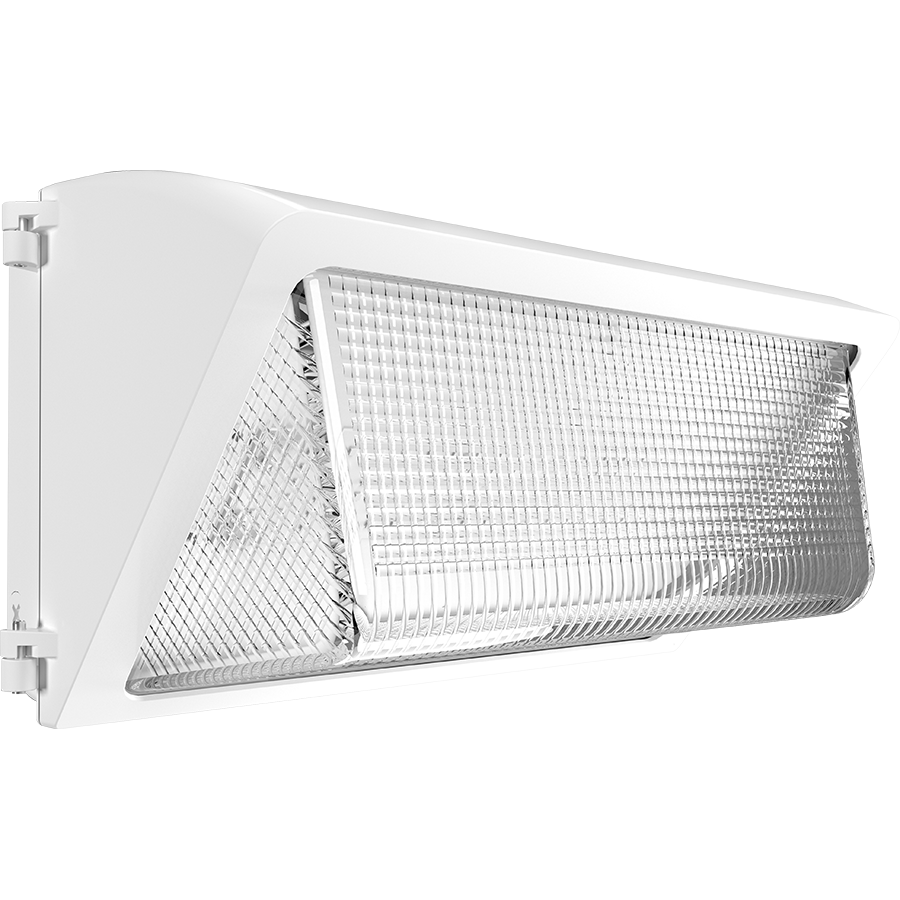

WP3LED83L-730WU
WP3LED83L-730WU
- Affordable wall pack with traditional look
- Ultra-high efficacy
- Covers footprint of large HID wall packs
- 100,000-Hour LED lifespan
Performance
| Watts | 55W |
| Color Temp | 3000K (Warm) |
| Lumens | 8,520 lm |
| Efficacy | 159.6 |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.46A |
| 208V | 0.26A |
| 240V | 0.23A |
| 277V | 0.20A |
| Input Watts | 53.4W |

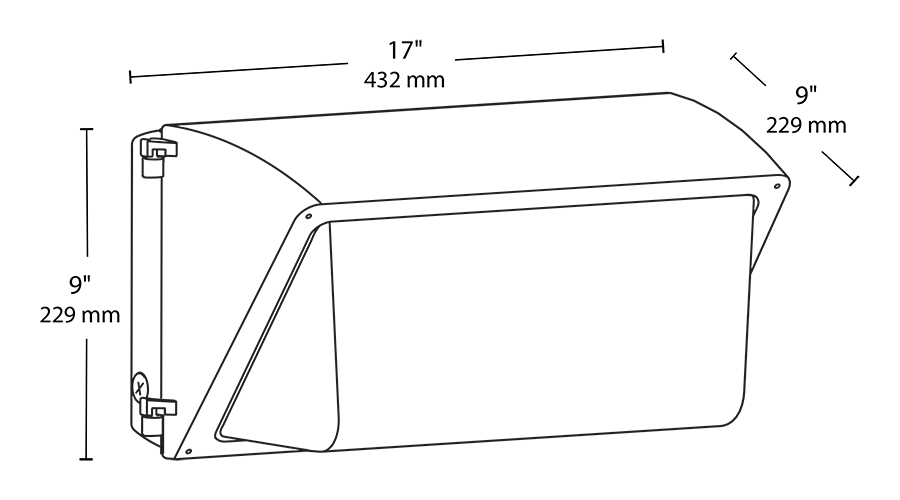

Dimensions
Weight: 24.7 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 250W Metal Halide
LED Characteristics
LEDs
Multip-chip, high-output, long-life LEDs
Construction
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Electrical
Driver
Constant Current, 120-277V, 50/60 Hz, 120V: 0.46A, 208V: 0.26A, 240V: 0.23A, 277V: 0.20A
THD
8.87% at 120V, 5.59% at 277V
Power Factor
99% at 120V, 98.9% at 277V
