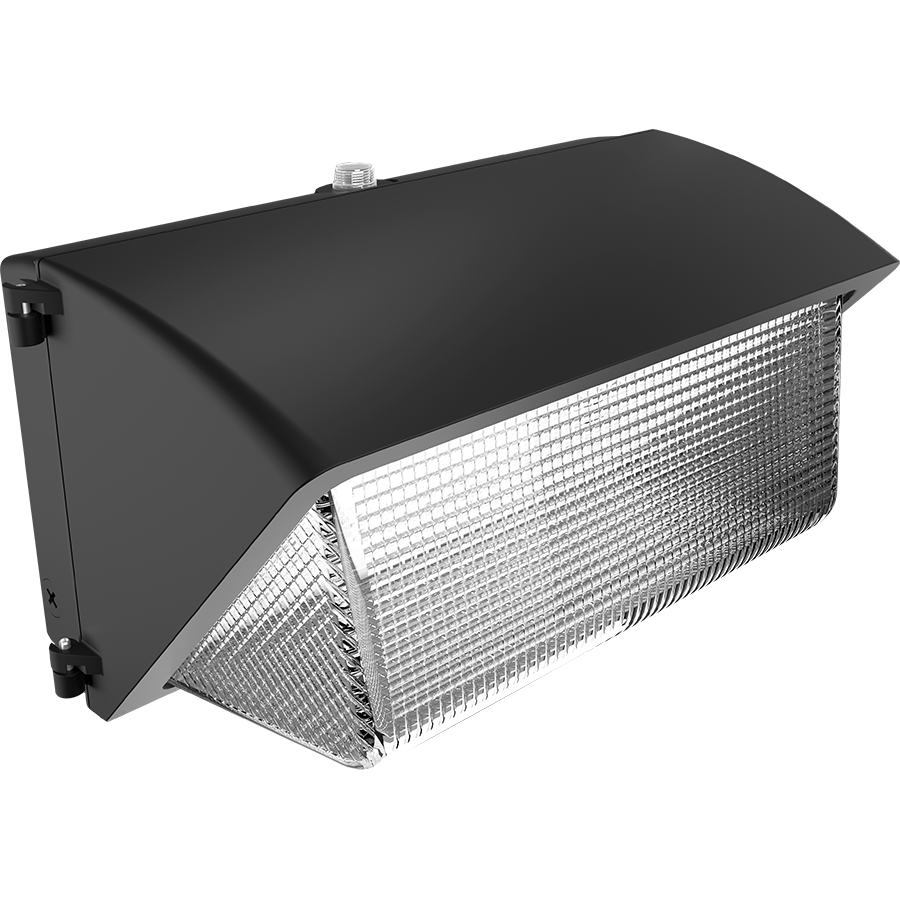

WP3LED150L-730U/PCS
WP3LED150L-730U/PCS large main
  • Affordable wall pack with traditional look
  • Ultra-high efficacy
  • Covers footprint of large HID wall packs
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 100W
Color Temp 3000K (Warm)
Lumens 16,229 lm
Efficacy 161
Color Accuracy 72 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.83A
208V 0.48A
240V 0.42A
277V 0.36A
Input Watts 100.8W
Dimensions
Link to Dimension Drawing

Weight: 24.7 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PGLN0AV6
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 400W Metal Halide
LED Characteristics
LEDs
Multip-chip, high-output, long-life LEDs
Construction
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Electrical
Driver
Constant Current, 120-277V, 50/60 Hz, 120V: 0.83A, 208V: 0.48A, 240V: 0.42A, 277V: 0.36A
THD
4.05% at 120V, 7.09% at 277V
Power Factor
99.9% at 120V, 97.6% at 277V
