W34-70L-830

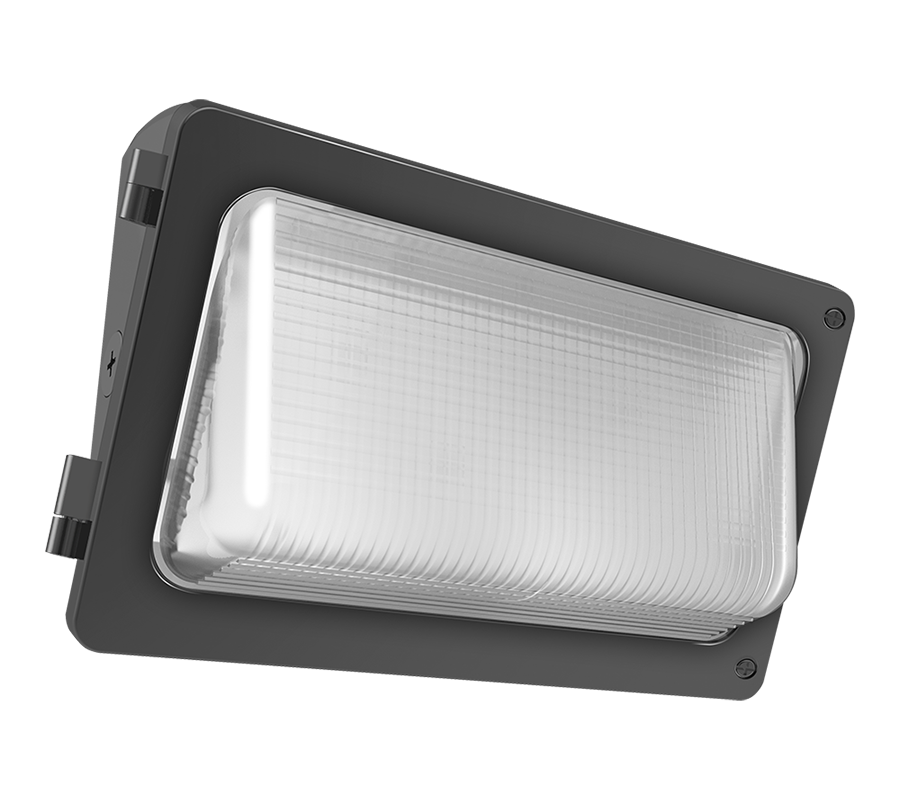

Economy-grade wall pack with traditional look

Covers footprint of medium-sized HID wall packs

Available in various lumen packages

Integrated 0-10V dimming

50,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	69W
Color Temp	3000K (Warm)
Lumens	8,392 lm
Efficacy	122.5 lm/W
Color Accuracy	84 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.58A
208V	0.34A
240V	0.29A
277V	0.25A
Input Watts	68.5W

EZ-Layout

Create Custom Lighting Layout

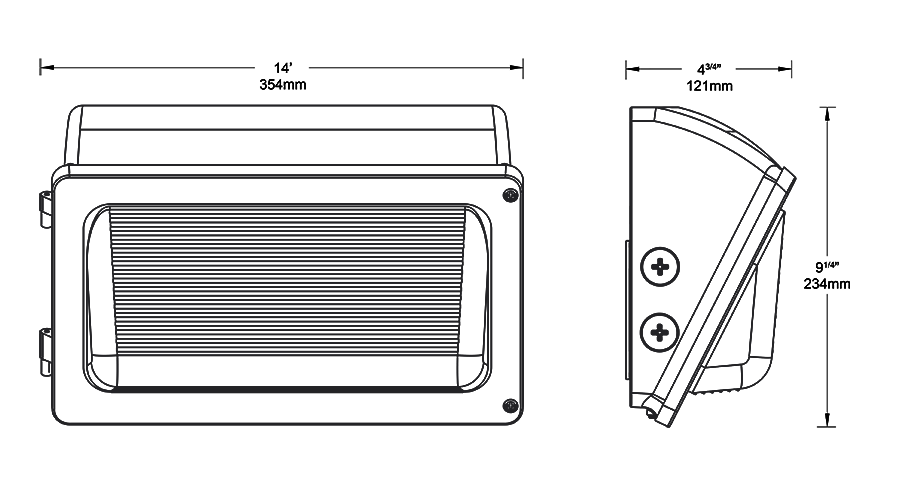

Dimensions

Weight: 10.4 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft of the ground.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Performance

Lifespan

50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 200W Metal Halide

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Housing

Die-cast aluminum

Lens

Glass

Reflector

Specular aluminum

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

Die-cast backbox with four (4) conduit entry points and knockout pattern for junction box or direct wall mounting. Hinged door for easy re-assembly.

Other

Replacement

Replaces up to 250W Metal Halide

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Optical

BUG Rating

B2 U3 G2

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.58A, 208V: 0.34A, 240V: 0.29A, 277V: 0.25A

THD

6.8% at 120V, 7.92% at 277V

Power Factor

99.6% at 120V, 96.7% at 277V
