W34-30L-840/MVS
W34-30L-840/MVS

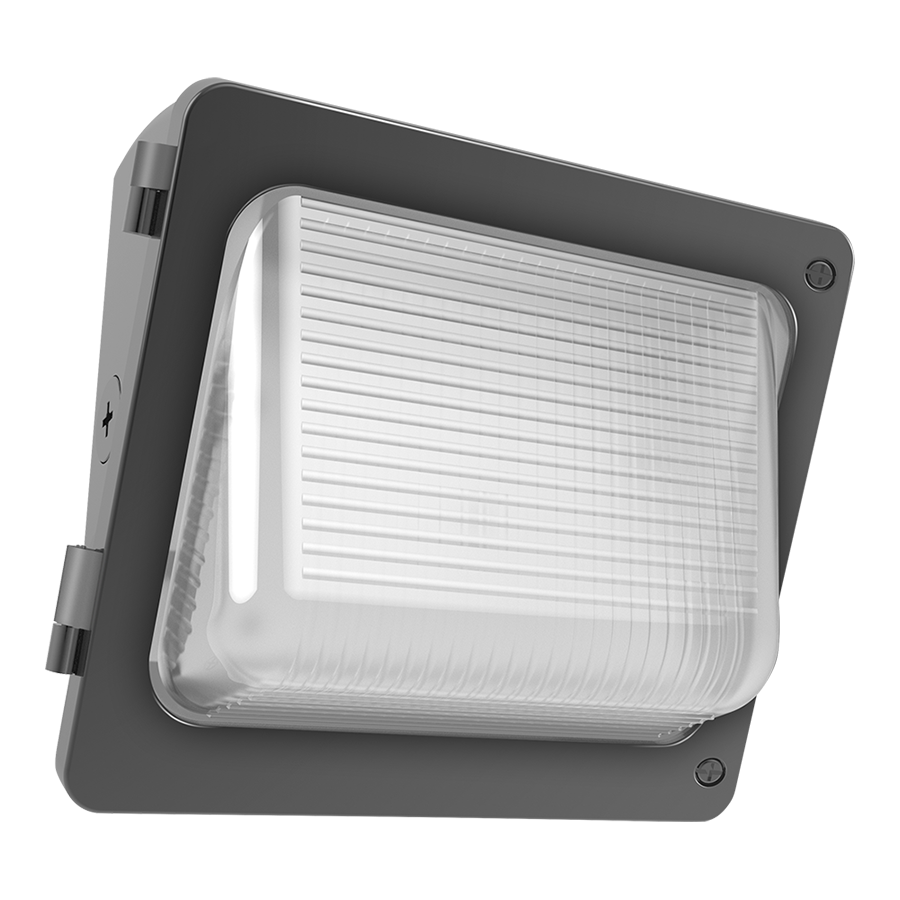

- Economy-grade wall pack with traditional look
- Covers footprint of small HID wall packs
- Available in various lumen packages
- Integrated 0-10V dimming
- 50,000-Hour LED lifespan
Performance
| Watts | 30W |
| Color Temp | 4000K (Neutral) |
| Lumens | 3,497 lm |
| Efficacy | 120.2 lm/W |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.25A |
| 208V | 0.15A |
| 240V | 0.13A |
| 277V | 0.12A |
| Input Watts | 29.1W |

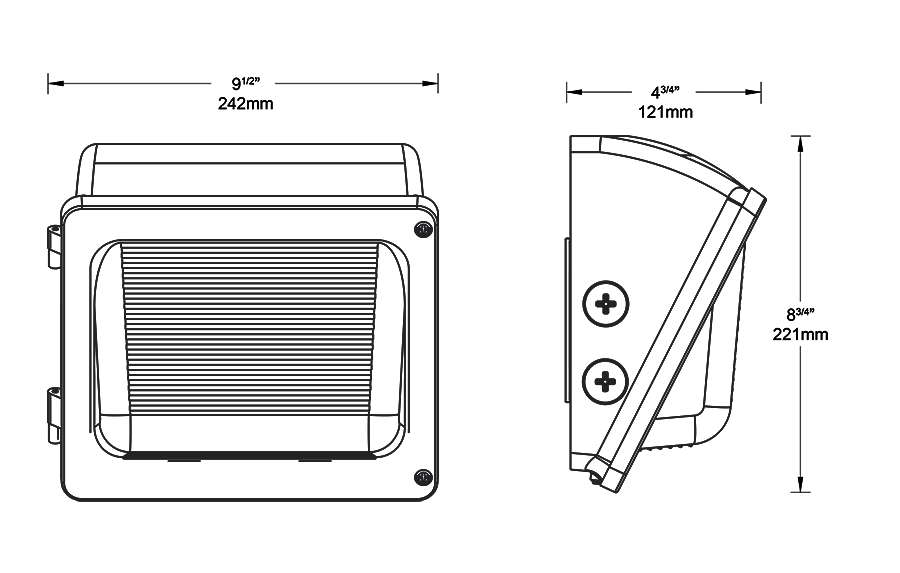

Dimensions
Weight: 6.8 lbs
Technical Specifications
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A
THD
3.46% at 120V, 4.25% at 277V
Power Factor
99.6% at 120V, 92.6% at 277V
Compliance
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PPXBTG89
DLC Product Code: PPXBTG89
