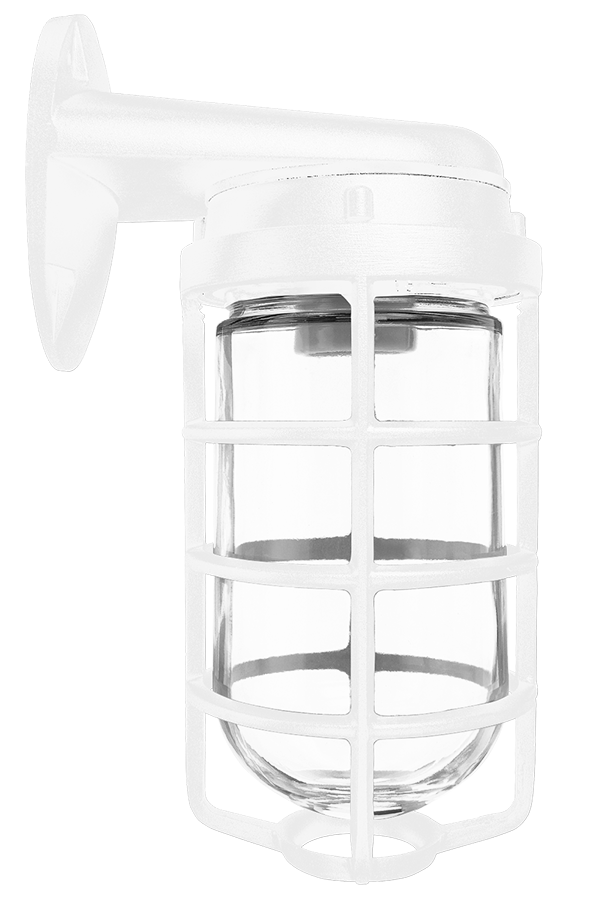

VBR100DGW
VBR100DGW
- Set screw keeps guard securely in place
- All stainless steel hardware
- Close-up plugs allow Phillips or slotted screwdrivers for easy installation
- High temperature silicone internal gaskets
- Premium porcelain socket with 150C 8" long leads attached
Performance
| Watts | 150W |
| Color Temp | |
| Lumens | |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts |
Dimensions
Weight: 2.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for use in dwellings. Suitable for use with 90°C supply wiring. Complies with UL Standard 1598. For non-hazardous locations where the lamp, socket and wiring require protection from rain, corrosive fumes, non-combustible dusts, moisture, non-explosive vapors and gases.
Electrical
Wattage
See catalog number chart for maximumWage with clear glass, colored glass and Permaglobes
Socket
Premium porcelain with 150°C 8" leads attached. Fastened with 2 stainless steel screws.
Maximum Watts
150W
Colored Globe Maximum Watts
100W
Construction
Globes
Supplied with clear heat resistant glass globes unless otherwise stated. Colored and white glass globes available. Unbreakable RAB Permaglobes available in clear and in color.
Optional Reflectors
Highly reflective white baked polyester epoxy powder finish over a heavy gauge aluminum base. Reflectors thread onto fixtures. See RV series.
Die Cast Guard
Supplied with one piece white die cast guard with set screw
