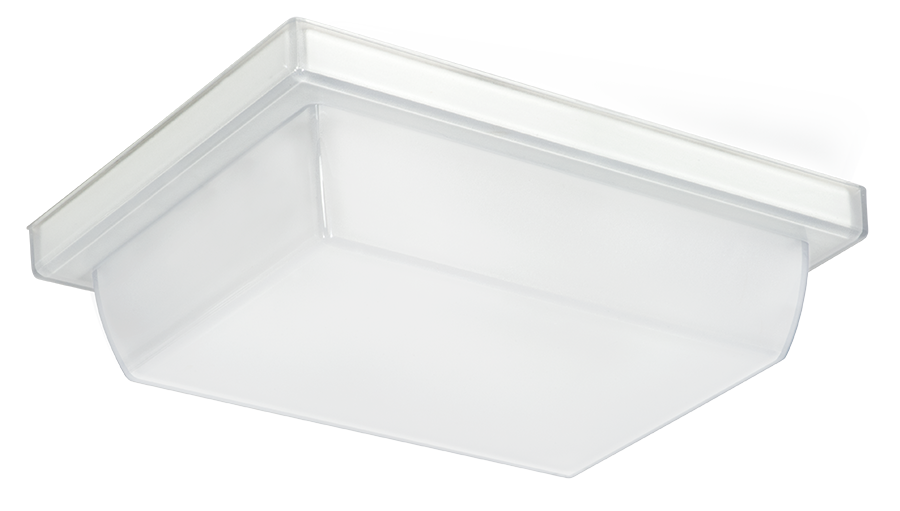

VAN1LED12W
VAN1LED12W
- Vandalproof polycarbonate drop lens
- Ultra efficiency
- Low-profile design
Performance
| Watts | 12W |
| Color Temp | 5000K (Cool) |
| Lumens | 1,570 lm |
| Efficacy | 121.7 lm/W |
| Color Accuracy | 85 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.103A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 12.9W |

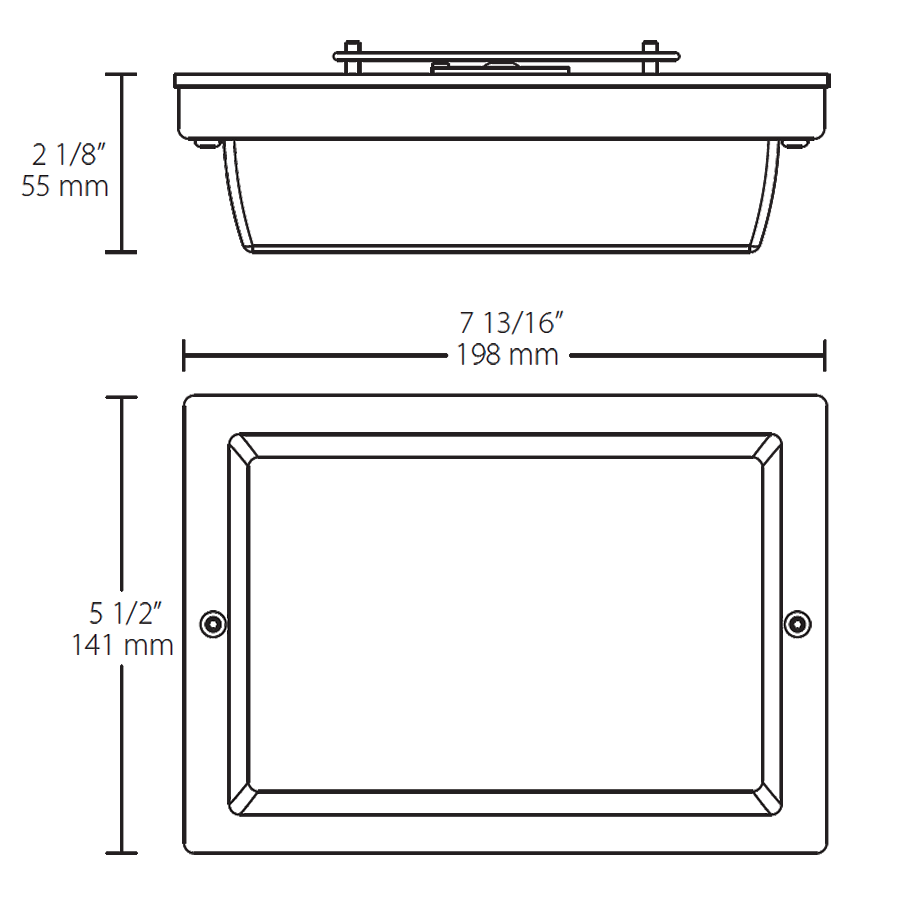

Dimensions
Weight: 1.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for Wet Locations. Covered Ceiling Mount Only.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Other
Dimmer Compatibility
TRIAC/ELV dimming capable. See dimmer compatibility guide here.
Optional Sensor
VAN1LED is compatible with occupancy sensors. Click here to see all occupancy sensor accessories.
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Construction
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Maximum Ambient Temperature
Suitable for use in up to 113°F (45°C)
Housing
Precision steel housing
Lens
Vandalproof, frosted polycarbonate drop lens
Gaskets
High-temperature silicone gaskets
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 70W Metal Halide
LED Characteristics
LEDs
120V long-lfe LEDs
Color Stability
RAB LEDs exceed industry standards for chromatic stability
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Ceiling mount to recessed junction with knockout template. Tamperproof screws.
Electrical
Driver
AC board, 50/60 Hz., 120V: 103 mA
THD
11.2% at 120V
Power Factor
99.4% at 120V
Surge Protection
2.5 kV
