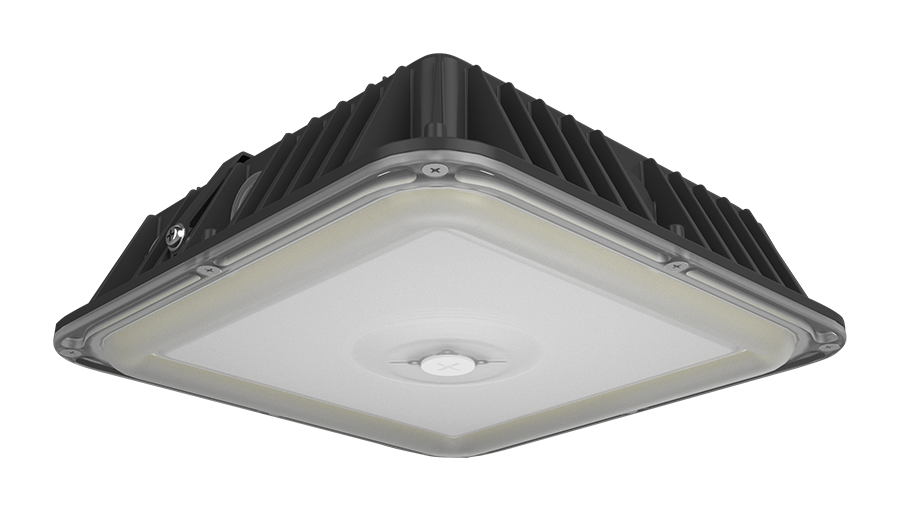

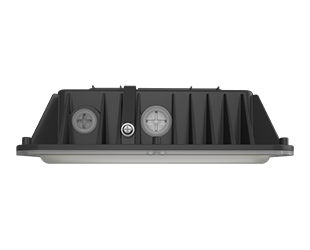

VAN17-60
60W 3000/4000/5000K
- 50,000-Hour LED lifespan
- 0-10V Dimming
- IP65 Rated
- 5-Year, limited warranty
Performance
| Watts | 60/50/40W |
| Color Temp | 3000/4000/5000K |
| Lumens | 5,736-8,806 lm |
| Efficacy | 135.4-157.2 lm/W |
| Color Accuracy | 81-83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.50A/0.42A/0.33A |
| 208V | 0.29A/0.24A/0.19A |
| 240V | 0.25A/0.20A/0.17A |
| 277V | 0.22A/0.18A/0.14A |
| Input Watts | 38.8-59.9W |
Dimensions
Weight: 4.2 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
60W/50W/40W (factory default: 60W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)
Photocell Selectable:
Built-in on/off photocell (factory default: off)
60W/50W/40W (factory default: 60W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)
Photocell Selectable:
Built-in on/off photocell (factory default: off)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Drivers
Constant Current, Class 2, 120-277V, 50/60 Hz:
60W: 120V: 0.50A, 208V: 0.29A, 240V: 0.25A, 277V: 0.22A
50W: 120V: 0.42A, 208V: 0.24A, 240V: 0.20A, 277V: 0.18A
40W: 120V: 0.33A, 208V: 0.19A, 240V: 0.17A, 277V: 0.14A
60W: 120V: 0.50A, 208V: 0.29A, 240V: 0.25A, 277V: 0.22A
50W: 120V: 0.42A, 208V: 0.24A, 240V: 0.20A, 277V: 0.18A
40W: 120V: 0.33A, 208V: 0.19A, 240V: 0.17A, 277V: 0.14A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
3.79% at 120V, 4.1% at 277V
Power Factor
99.9% at 120V, 97.4% at 277V
Surge Protection
L-N: 4 kV
L/N-PE: 6 kV
L/N-PE: 6 kV
Photocell
Bulit-in photocell included with on/off switch
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Performance Data
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 122°F (50°C)
Housing
Precision die-cast aluminum housing and door frame
Lens
Vandal-resistant polycarbonate textured opaque for low-glare lens
Reflector
Plastic
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Retrofit mounting plates for ceiling mounting
Optical
BUG Rating
60W: B3 U0 G2
50W: B3 U0 G2
40W: B2 U0 G2
50W: B3 U0 G2
40W: B2 U0 G2
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
