Performance
| Watts | |
| Color Temp | |
| Lumens | |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan | 50,000 Hours |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts |
Dimensions
Weight: 1.8 lbs
Technical Specifications
Performance
Product Type
LED Tape Light Driver Wet Rated
Description

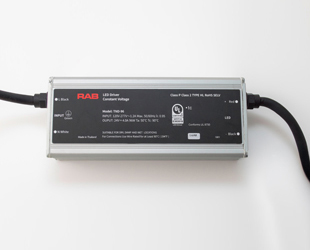

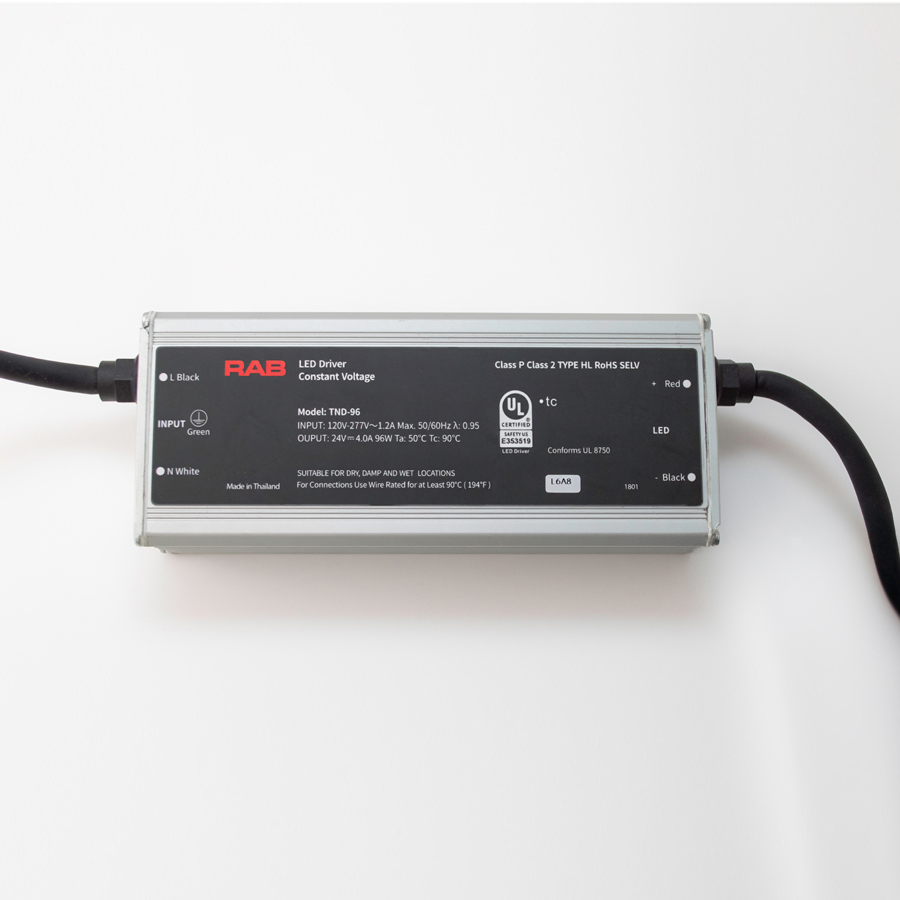

Driver IP67 96W 120-277V for Lightcloud Blue ARCTAPE, FLEXTAPE, NEOFLEX
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Power Factor
0.95
Dimmable
Yes via the Lightcloud Blue mobile app and devices.
This driver will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
This driver will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Input Voltage
120-277V
Output Power
96W Max
Output Voltage
24VDC
Output Current
4A
Operating Frequency
47-63Hz
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Construction
Material Construction
Dedicated line voltage and low-voltage wiring compartments. Multiple 7/8" knock-outs for easy wire configuration.
Compliance
Listings
UL8750
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP67
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
Compatible with the following ARCTAPE products: TIC/LCB
Compatible with the following FLEXTAPE products: TOS/LCB, TOS/RGB
Compatible with the following NEOFLEX products: TNF/LCB, TNF/RGB
Compatible with the following FLEXTAPE products: TOS/LCB, TOS/RGB
Compatible with the following NEOFLEX products: TNF/LCB, TNF/RGB
