TID-60
- 120-277V Universal input voltage
- Phase dimmable, TRIAC/ELV
- 0.1% Performance dimming, dim-to-dark>Indoor Rated
- UL Listed and Title 24 JA8 Compliant
- 5-year limited warranty
Performance
| Watts | |
| Color Temp | |
| Lumens | |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Voltage |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts |
Dimensions
Weight: 0.6 lbs
Technical Specifications
Performance
Product Type

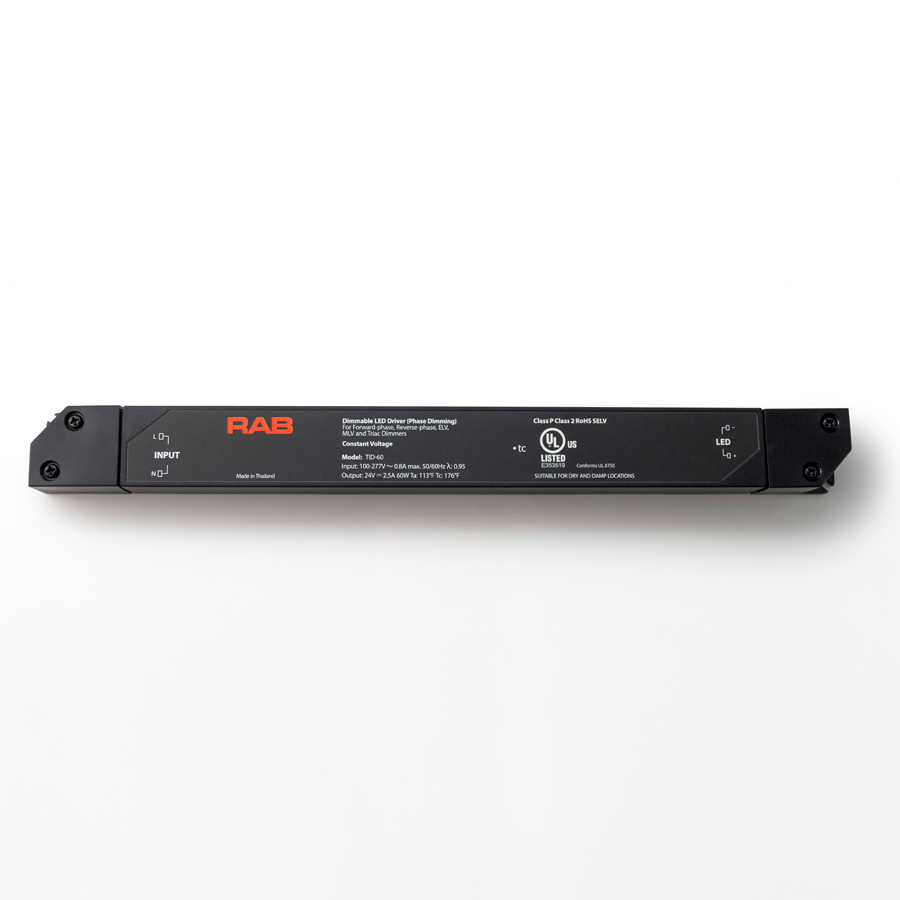

LED Tape Light Linear Driver - Damp rated
Description
Versatile driver with high-performance dimming on ELV, TRIAC, and 0-10V dimming system that allows for dim-to-dark
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Power Factor
0.95
Dimmable
Yes, dimmable down to 0.1% on compatible TRIAC/ELV or 0-10V dimming systems. See Dimmer Compatibility List.
Input Voltage
DC24V
Output Power
60W Max
Output Voltage
24VDC
Output Current
2.5A
Operating Frequency
47-63Hz
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Storage Temperature
-4°F (-20°C) to 140°F(60°C)
Construction
Material Construction
Dedicated line voltage and low-voltage wiring compartments. Multiple 7/8" knock-outs for easy wire configuration.
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry and damp environments.
IP Rating
IP20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
Compatible with the following ARCTAPE products: TICYY, TICY, TICYN, TICN, TICCW, TICLYY, TICLY, TICLYN, TICLN, TICLCW, TICHYY, TICHY, TICHYN, TICHN, TICHCW
Compatible with the following FLEXTAPE products: TOSYY, TOSY, TOSYN, TOSN, TOSCW, TOSLYY, TOSLY, TOSLYN, TOSLN, TOSLCW, TOSHYY, TOSHY, TOSHYN, TOSHN, TOSHCW
Compatible with the following NEOFLEX products: TNFYY, TNFY, TNFYN, TNFN, TNFCW
Compatible with the following PURELINE products: TOCYY, TOCY, TOCYN, TOCN, TOCCW
Compatible with the following FLEXTAPE products: TOSYY, TOSY, TOSYN, TOSN, TOSCW, TOSLYY, TOSLY, TOSLYN, TOSLN, TOSLCW, TOSHYY, TOSHY, TOSHYN, TOSHN, TOSHCW
Compatible with the following NEOFLEX products: TNFYY, TNFY, TNFYN, TNFN, TNFCW
Compatible with the following PURELINE products: TOCYY, TOCY, TOCYN, TOCN, TOCCW
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
