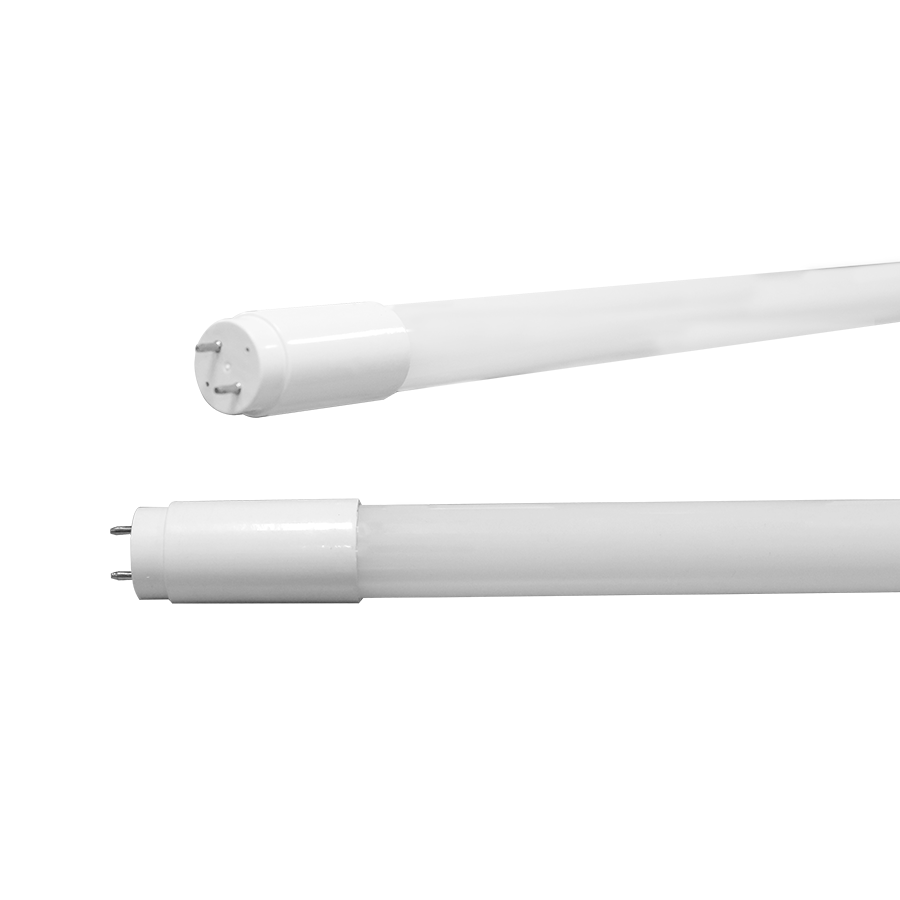

T8-9.5-48G-830-SD-BYP

Spec Sheet LM79 FCC Caution Family Spec Sheet Spec Sheet

Replacement for conventional fluorescent T8 and T12 linear tubes

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Single ended and double ended wiring method

Works with non-shunted sockets and shunted sockets.

Approximately 50% more energy efficient when compared to Fluorescent T8 lamps

50,000 hour Lifespan.

Rated for use in enclosed and open fixtures in dry or damp locations

Diffused frosted lens will maintain the same light quality over time

Instant on full brightness

Environmentally friendly, no mercury used

NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)

Internal thermal fuse for added safety

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp	3000K
Lumens	1,600 lm
Efficacy	168
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277V
Power Factor	0.9
Flicker	80%
THDi	25%

Dimensions

Weight: 0.5 lbs

Technical Specifications

Performance

Product Type

T8 Type B, Ballast Bypass

Description

Single Ended or Double Ended wiring method makes these Type B tubes super flexible for in field installation.

Wattage Equivalency

32W Fluorescent

Input Wattage

9.5W

Lumens (Nominal)

1,600lm

Efficacy

168lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, non-isolated driver 120-277V 50/60 Hz; 120V: 105mA; 208V: 53mA; 240V: 46mA; 277V: 42mA

THD

<25%

Power Factor

0.9

Dimmable

Yes, but not reccommended for dimming applications.

Input Voltage

120-277V

Operating Temperature

-4°F to 113°F(-20 to 45°C)

Flicker

80%

LED Characteristics

Beam Angle

140°

Color Temperature

3000K

Color Accuracy (CRI)

≥80 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Base Type

G13

Construction

Length

4 ft

Shape

Finish

White

Endcap Material

Polycarbonate

Enclosure Material

Glass

Lens Finish

Frosted

Compliance

Listings

UL Listed, UL Classified, UL Recognized

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures.
Suitable for use in open fixtures.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Certification Model Number

T20141(T8-9.5-48G-830-SD-BYP)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
