T8-8-36GC-840-DIR

Spec Sheet Dimmer Compatibility List LM79 Compatibility List Instructions FCC Caution Spec Sheet

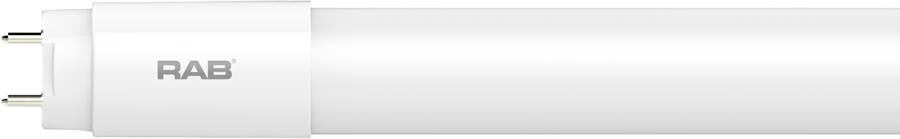

T8-8-36GC-840-DIR

Direct Replacement for Fluorescent Lamps: F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W

Easy to install plug and play that requires no rewiring, no tools, no instructions

50,000 hour Lifespan

Rated for use in enclosed and open fixtures in dry or damp locations

Diffused frosted lens will maintain the same light quality over time

Compatible with most instant start electronic T8 ballasts, Please check Compatibility List

Approximately 40% more efficient than fluorescent T8 lamps

Instant on full brightness

Environmentally friendly, no mercury used

NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)

Compatible with RAB specified 0-10V dimming system

View Technical Specs

View Price & Availability

Performance

Watts	8W
Color Temp	4000K (Cool White)
Lumens	1,200 lm
Efficacy	150 lm/W
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	Ballast Dependent
Power Factor	Ballast Dependent
Flicker	Ballast Dependent
THDi	N/A

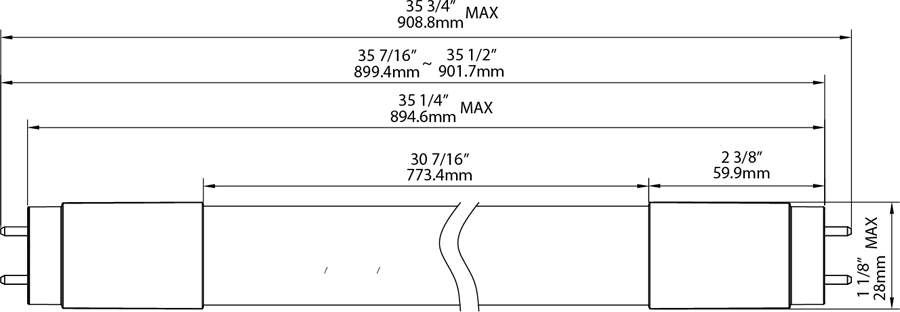

Dimensions

Weight: 0.4 lbs

Technical Specifications

Performance

Product Type

Linear

Input Wattage

Lumens

1,200lm

Efficacy

150lm/W

L70 Lifespan

50,000 Hours

Wattage Equivalency

25W Fluorescent

Construction

Material

Coated Glass

Shape

Nominal Length

3 ft

Finish

Frosted

For Use Outdoors in Open Fixtures

Compliance

Certification Model Number

PAR16-6-940-40D-DIM

UL Listed

Yes

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

California Energy Commission (CEC) Status

Lawful for Sales in California

Application

Suitable for damp locations and totally enclosed fixtures.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: PLYE889WCXC1

LED Characteristics

Color Temperature

4000K Cool White

Color Accuracy (CRI)

80 CRI

Beam Angle

180°

Installation

Base Type

G13

Installation Type

Type A, Plug and Play

Electrical

THD

≤25%

Power Factor

Ballast Dependent

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Dimming

Yes with 0-10V dimmer + ballast. See Dimmer Compatibility List.

Input Voltage

Ballast Dependent

Operating Frequency

Ballast Dependent

Input Current @ 120V

Ballast Dependent

Input Current @ 277V

Ballast Dependent

Flicker

Ballast Dependent

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
