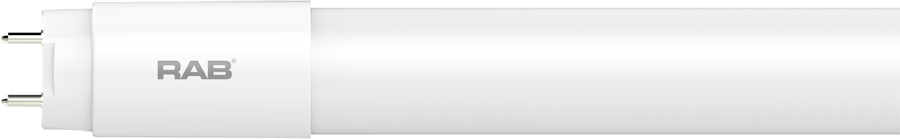

T8-7-24GC-835-SD-BYP

Spec Sheet LM79 Instructions FCC Caution Spec Sheet

Replacement for conventional fluorescent T8 and T12 linear tubes

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Single ended and double ended wiring method

Works with non-shunted sockets and shunted sockets

Approximately 50% more energy efficient when compared to Fluorescent T8 lamps

50,000 hour Lifespan

Rated for use in enclosed and open fixtures in dry or damp locations

Diffused frosted lens will maintain the same light quality over time

Instant on full brightness

Environmentally friendly, no mercury used

NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)

Shatter resistant Coated Glass designed to pass drop tests of 6' on hard surface

Internal thermal fuse for added safety

UL Classified, DLC Listed

View Technical Specs

View Price & Availability

Performance

Watts	7W
Color Temp	3500K (Neutral White)
Lumens	950 lm
Efficacy	135.7 lm/W
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277
Power Factor	>0.9
Flicker	N/A
THDi	N/A

Dimensions

Weight: 0.3 lbs

Technical Specifications

Performance

Product Type

Linear

Input Wattage

Wattage Equivalency

17W Fluorescent

Lumens

950lm

Efficacy

130lm/W

L70 Lifespan

50,000 Hours

Construction

Material

Coated Glass

Bulb Shape

Nominal Length

2 ft

Finish

Frosted

For Use Outdoors in Open Fixtures

LED Characteristics

Color Temperature

3500K Neutral White

Color Accuracy (CRI)

80 CRI

Beam Angle

180°

Installation

Base Type

G13

Installation Type

Type B, Single or Double Ended wiring

Electrical

THD

≤25%

Power Factor

>0.9

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Dimmable

Input Voltage

120-277V AC

Operating Frequency

50/60Hz

Input Current @ 120V

68mA

Input Current @ 277V

29mA

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Recognized

Yes

UL Classified

Yes

Certification Model Number

T10019

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

California Energy Commission (CEC) Status

Lawful for Sales in California
