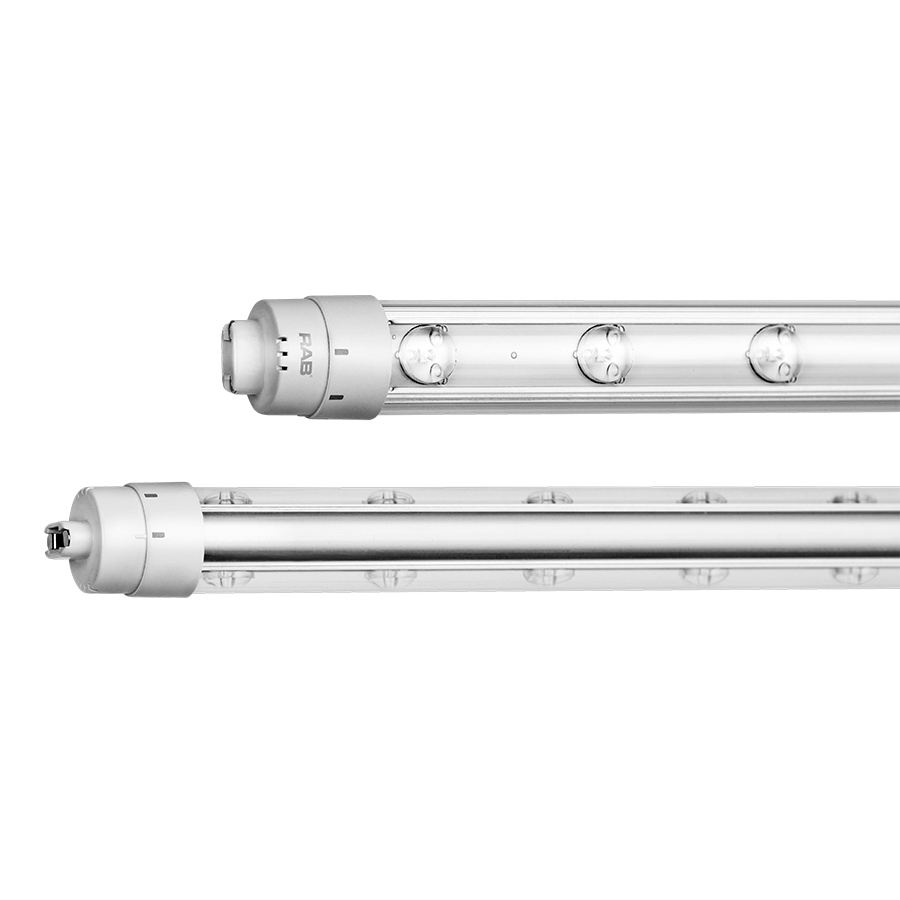

T8-17.5-42P2S-865-DE-BYP
T8-17.5-42P2S-865-DE-BYP
- LEDs located on both sides of the tube provides 360-degree light output
- Optics designed to deliver smooth even light without hot spots
- Multiple lengths available for any application needed
- 120V-277V - Universal voltage
- Ambient temperature: -20°C/-4°F to 55°C/131°F
- Rotatable endcaps allow installer to direct light where needed
- Robust plastic and aluminum construction to minimize breakage
- Mercury and UV free. RoHS-compliant components.
- Double-ended bypass installation for simple install and reduced maintenance costs
Performance
| Watts | 17W |
| Color Temp | 6500K |
| Lumens | 2,300 lm |
| Efficacy | 131 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | <20% |
Dimensions
Weight: 0.7 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
17.5W
Lumens
2,300lm
Efficacy
131lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
T8HO and T12HO
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
6500K
Beam Angle
360°
Electrical
THD
<20%
Power Factor
>0.9
Dimmable
Non-Dim
Operating Temperature
-20°C to 55°C
Input Voltage
120-277V
Operating Frequency
50/60Hz
Construction
Nominal Length
42"
Shape
T8
Enclosure Material
Plastic+Aluminum
Lens Finish
Clear
Installation
Base Type
R17D
Installation Method
UL Type B, Ballast Bypass - Double Ended Wire
Other
Technology EQ
Fluorescent
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Listed
Environment
Damp / Enclosed
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
