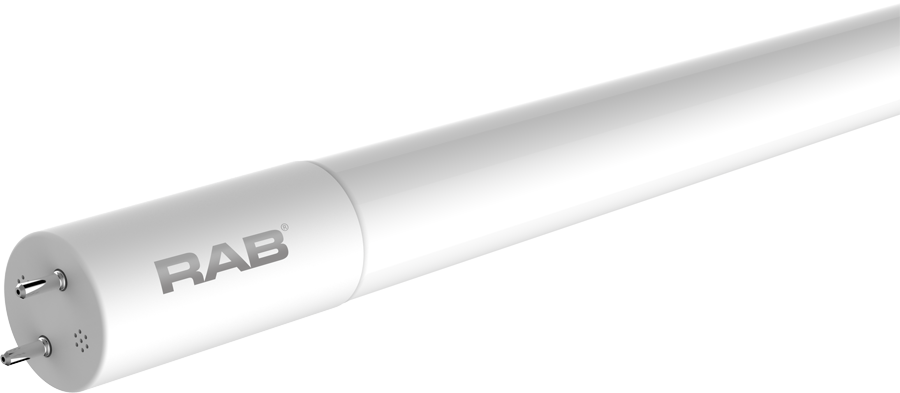

T8-17-48G-835-DE-BYP
T8-17-48G-835-DE-BYP
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Double ended wiring method
- Works with shunted sockets.
- Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
- 50,000 hour Lifespan.
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Instant on full brightness
- Environmentally friendly, no mercury used
- NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
- Internal thermal fuse for added safety
- Emergency back up available
Performance
| Watts | 17W |
| Color Temp | 3500K (Neutral White) |
| Lumens | 2,100 lm |
| Efficacy | 124 |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277 |
| Power Factor | 0.9 |
| Flicker | N/A |
| THDi | N/A |

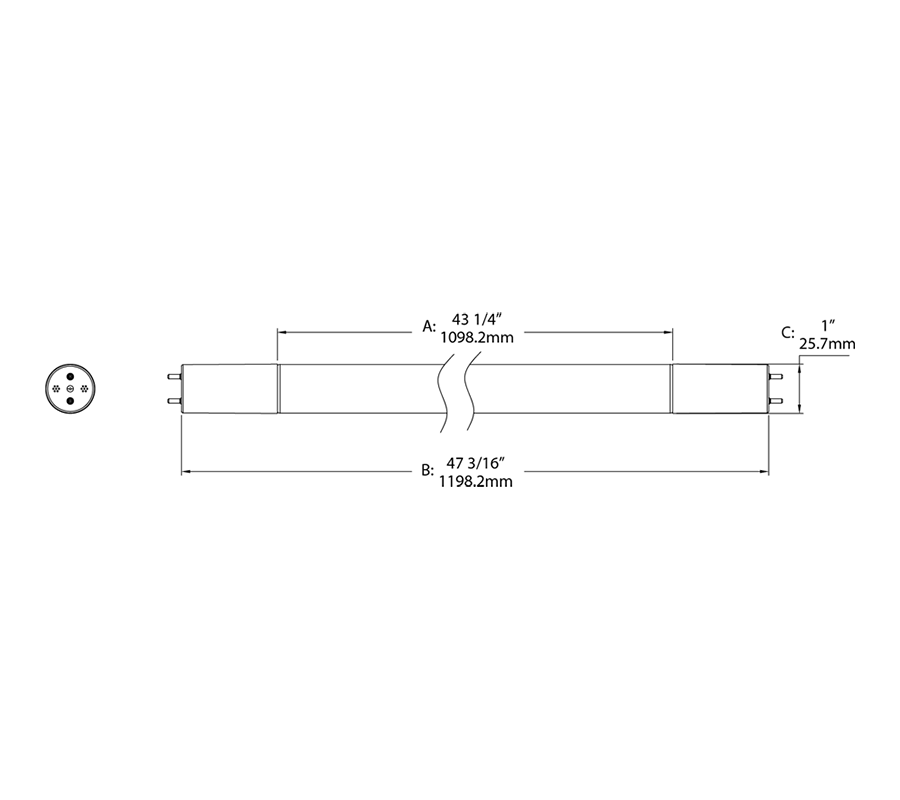

Dimensions
Weight: 0.6 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
17W
Lumens
2,100lm
Efficacy
124lm/W
L70 Lifespan
50,000 Hours
Wattage Equivalency
32W Fluorescent
Construction
Material
Glass
Shape
T8
Nominal Length
4 ft
Finish
Frosted
For Use Outdoors in Open Fixtures
No
LED Characteristics
Color Temperature
3500K Neutral White
Color Accuracy (CRI)
82 CRI
Beam Angle
210°
Installation
Base Type
G13
Installation Type
Type B, Double Ended wiring
Electrical
THD
<20%
Power Factor
0.9
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Dimming
No
Input Voltage
120-277V AC
Operating Frequency
50/60Hz
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Recognized
Yes
UL Classified
Yes
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
Certification Model Number
T8-17-48G-835-DE-BYP
California Energy Commission (CEC) Status
Lawful for Sales in California
Application
Suitable for damp locations and totally enclosed fixtures.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
