T8-15-U6GC-840-EXT
T8-15-U6GC-840-EXT
- Compatible with RAB Type C T8 LED Lamps only
- Meets FCC Part 15 (Class B) Consumer Limits
- Short Circuit Overload and Open Load Protection
- Suitable for Dry and Damp Locations
- UL8750 Recognized Component
- Dimmable with 0-10V Dimmer
- Maximum Case Temperature: 75°C/167°F
- Input Frequency: 50/60 Hz
- THD: < 20%
- Type P
- Output Class 2
Performance
| Watts | 15W |
| Color Temp | 4000K |
| Lumens | 2,200 lm |
| Efficacy | 133 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | Driver Dependent |
| Power Factor | 0.9 |
| Flicker | N/A |
| THDi | 20 |
Dimensions
Weight: 0.6 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
15W
Lumens
2,200lm
Efficacy
133lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Compliance
UL Listed
Suitable for damp locations
Enclosed Fixtures
Suitable for use in enclosed fixtures
Certification Model Number
T10339(T8-15-U6GC-840-EXT)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PLFEVVW3HZH1
DLC Product Code: PLFEVVW3HZH1
LED Characteristics
Color Temperature
4000K
Color Accuracy (CRI)
≥80 CRI
Beam Angle
160°
Construction
Bulb Shape
U6
Endcap Material
Polycarbonate
Enclosure Material
Glass & Polycarbonate
Installation
Base Type
G13
Electrical
THD
20%
Power Factor
0.9
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Input Voltage
Driver Dependent
Operating Frequency
50/60Hz
Dimming
Yes with 0-10V dimmer. See Dimmer Compatibility List.
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
\
Recently Viewed Products

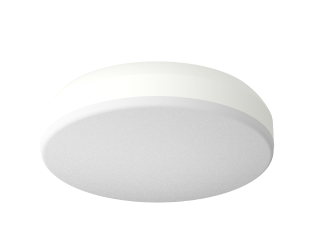

CRVFAS-11R-16-9CCT-UNVT-W/EMBB
