T8-11-36G-835-EXT

Spec Sheet Dimmer Compatibility List LM79 Instructions FCC Caution Spec Sheet

T8-11-36G-835-EXT

Replacement for conventional fluorescent T8 and T12 linear tubes

Dedicated External driver must be paired together with RAB tubes

Can be installed using single ended or double ended wiring method

Works with non-shunted sockets AND shunted sockets.

50,000 hour Lifespan

Rated for use in enclosed and open fixtures in dry or damp locations

Diffused frosted lens will maintain the same light quality over time

Instant on full brightness

Low Flicker less than 1%

UL Classified, DLC Listed

View Technical Specs

View Price & Availability

Performance

Watts	11W
Color Temp
Lumens	1,800 lm
Efficacy	163.6 lm/W
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277V
Power Factor	>0.9
Flicker	Depend on Type C driver
THDi	<25%

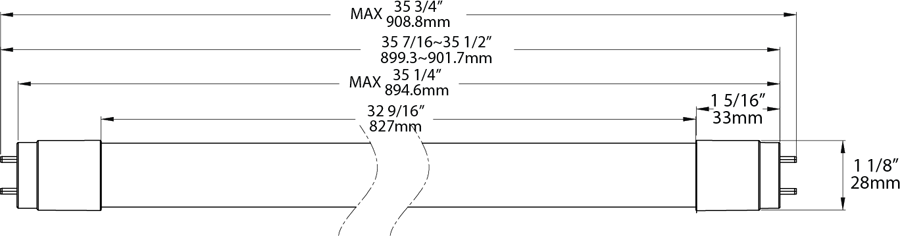

Dimensions

Weight: 0.4 lbs

Technical Specifications

Performance

Product Type

Linear

Input Wattage

11W

Lumens

1,800lm

Efficacy

163lm/W

L70 Lifespan

50,000 Hours

Construction

Material

Glass

Shape

Nominal Length

3 ft

Finish

Frosted

For Use Outdoors in Open Fixtures

LED Characteristics

Color Temperature

3500K Neutral White

Color Accuracy (CRI)

80 CRI

Beam Angle

160°

Installation

Base Type

G13, Medium Bipin

Installation Type

Type C, External Driver

Electrical

THD

<25%

Power Factor

>0.9

Operating Frequency

50/60Hz

Dimming

Yes with 0-10V dimmer. See Dimmer Compatibility List.

Input Voltage

120-277V AC

Flicker

Depends on Type C Driver

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Listed

Suitable for damp locations. Suitable for use in enclosed fixtures.

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

Certification Model Number

T10101

California Energy Commission (CEC) Status

Lawful for Sales in California

Application

Suitable for damp locations and totally enclosed fixtures.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
