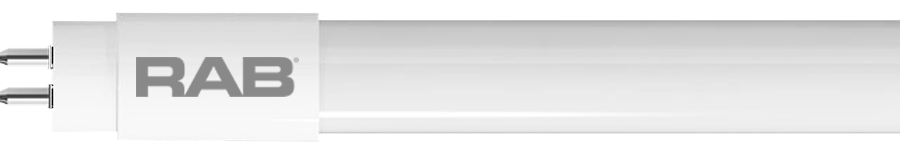

T5HE-11-36P-840-EXT
T5HE-11-36P-840-EXT
- Replacement for conventional fluorescent T8 and T12 linear tubes
Performance
| Watts | 11W |
| Color Temp | 4000K |
| Lumens | 1,650 lm |
| Efficacy | 127 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | Driver Dependent |
| Power Factor | 0.9 |
| Flicker | N/A |
| THDi | 20 |
Dimensions
Weight: 0.3 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
11W
Lumens
1,650lm
Efficacy
127lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Compliance
UL Listed
Suitable for damp locations
Enclosed Fixtures
Suitable for use in enclosed fixtures
LED Characteristics
Color Temperature
4000K
Color Accuracy (CRI)
≥80 CRI
Beam Angle
145°
Construction
Shape
T5 3 ft
Endcap Material
Plastic
Enclosure Material
Polycarbonate and Aluminum
Installation
Base Type
G5
Electrical
THD
20%
Power Factor
0.9
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Input Voltage
Driver Dependent
Operating Frequency
50/60Hz
Dimming
Yes with 0-10V dimmer. See Dimmer Compatibility List.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
