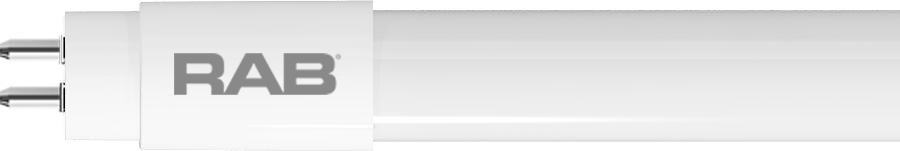

T5HE-10-24P-835-EXT

Replacement for conventional fluorescent T8 and T12 linear tubes

Performance

Watts	10W
Color Temp	3500K
Lumens	1,450 lm
Efficacy	132
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	Driver Dependent
Power Factor	0.9
Flicker	N/A
THDi	20

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.2 lbs

Technical Specifications

Performance

Product Type

Linear

Input Wattage

10W

Lumens

1,450lm

Efficacy

132lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

3500K

Color Accuracy (CRI)

≥80 CRI

Beam Angle

145°

Construction

Shape

T5 2 ft

Endcap Material

Plastic

Enclosure Material

Polycarbonate and Aluminum

Installation

Base Type

Electrical

THD

20%

Power Factor

0.9

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Input Voltage

Driver Dependent

Operating Frequency

50/60Hz

Dimming

Yes with 0-10V dimmer. See Dimmer Compatibility List.

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
