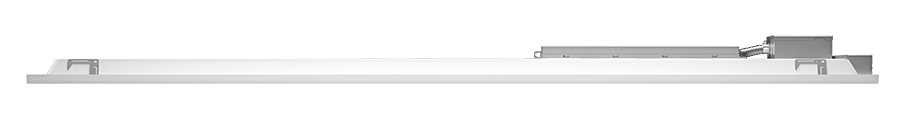

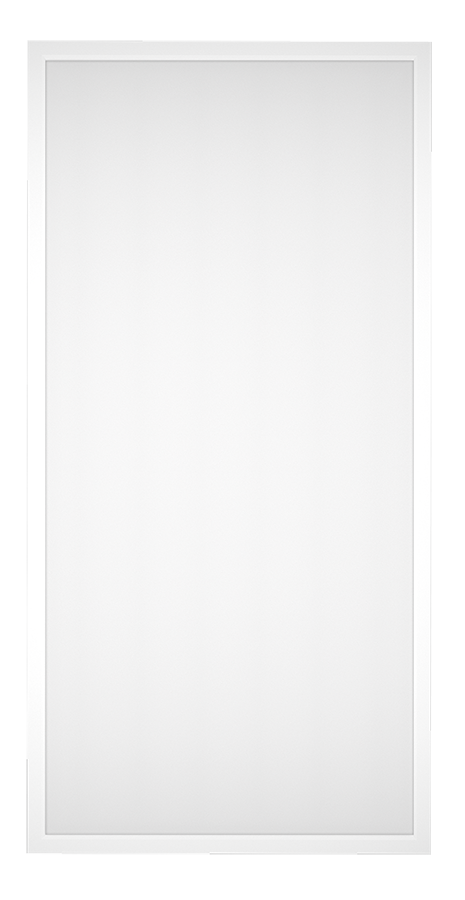

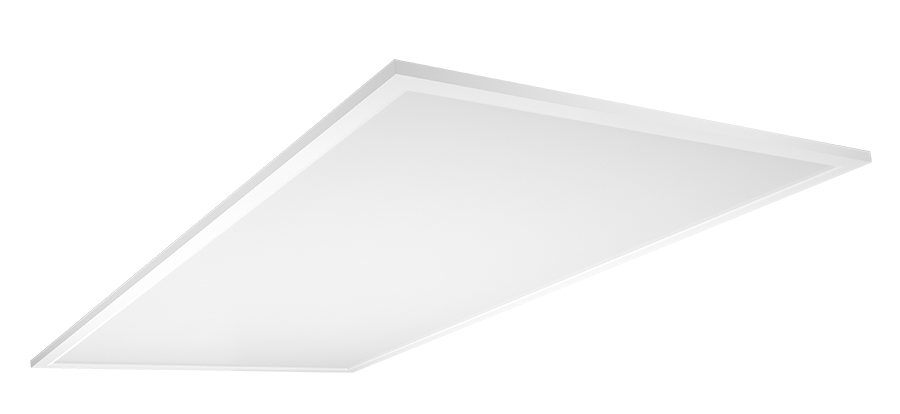

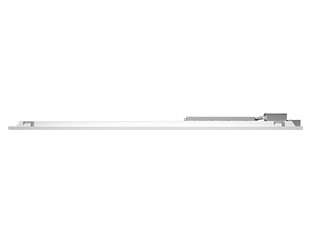

T34FAHE-2X4/E

30W Field Adjustable 5000/4000/3500K

0-10V dimming

50,000-Hour LED lifespan

5-Year, limited warranty

2 per case, must order in case quantity increments

View Technical Specs

View Price & Availability

Performance

Watts	30/23/17W
Color Temp	Field Adjustable 5000/4000/3500K
Lumens	2,329-3,922 lm
Efficacy	125.7-136.8 lm/W
Color Accuracy	81-84 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.24A/0.19A/0.14A
208V	0.14A/0.11A/0.08A
240V	0.12A/0.09A/0.07A
277V	0.11A/0.09A/0.07A
Input Watts	17.6-30.3W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 9.6 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
30W/23W/17W (factory default 30W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

CCEA Compliant

Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago

IC Rated

Suitable for direct contact with insulation

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-8HQXDV

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Performance

Lifespan

50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Electrical

Driver

30W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.24A, 208V: 0.14A, 240V: 0.12A, 277V: 0.11A

23W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.19A, 208V: 0.11A, 240V: 0.09A, 277V: 0.09A

17W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.14A, 208V: 0.08A, 240V: 0.07A, 277V: 0.07A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.

THD

15% at 120V, 15% at 277V

Power Factor

96.2% at 120V, 92% at 277V

Surge Protection

L-N: 2 kV
L/N-GND: 4 kV

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.

Construction

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Lens

Frosted polystyrene

Housing

Aluminum frame with iron backplate

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
