SWISHFA-EDGE2X2-840U/LC/E2

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

SWISHFA-EDGE2X2-840U/LC/E2 small thumb-1

SWISHFA-EDGE2X2-840U/LC/E2

29W 4000K (Neutral)

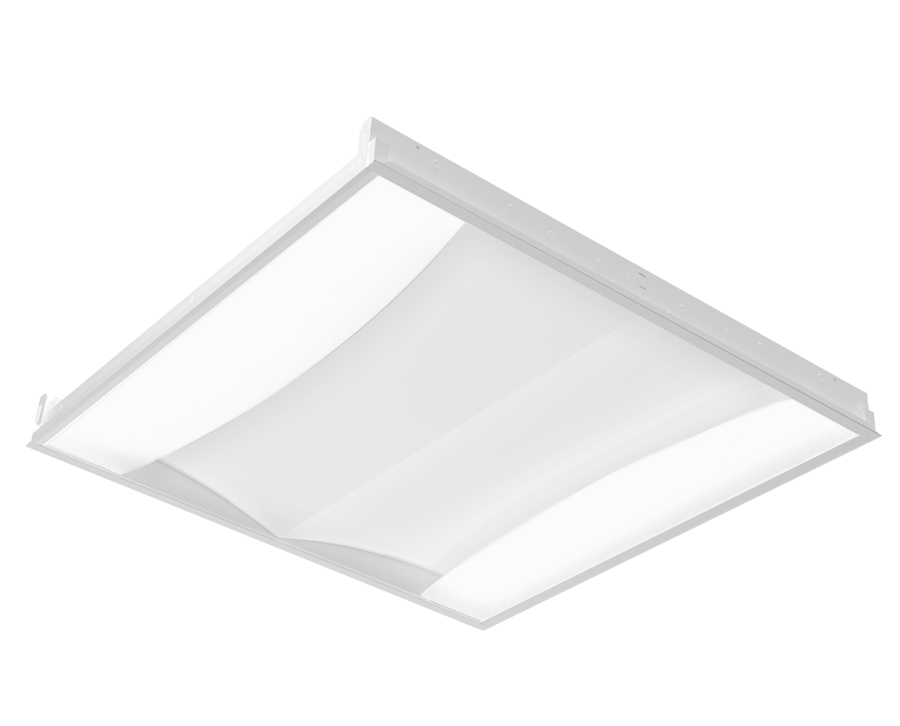

Contemporary LED centerbasket with direct/indirect illumination

Field-adjustable light output (3 discrete steps) - can be changed before, during or after installation

100,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	29W
Color Temp	4000K (Neutral)
Lumens	3,355 lm
Efficacy	119.4 lm/W
Color Accuracy	83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.26A
208V	0.14A
240V	0.12A
277V	0.11A
Input Watts	28.1W

EZ-Layout

Create Custom Lighting Layout

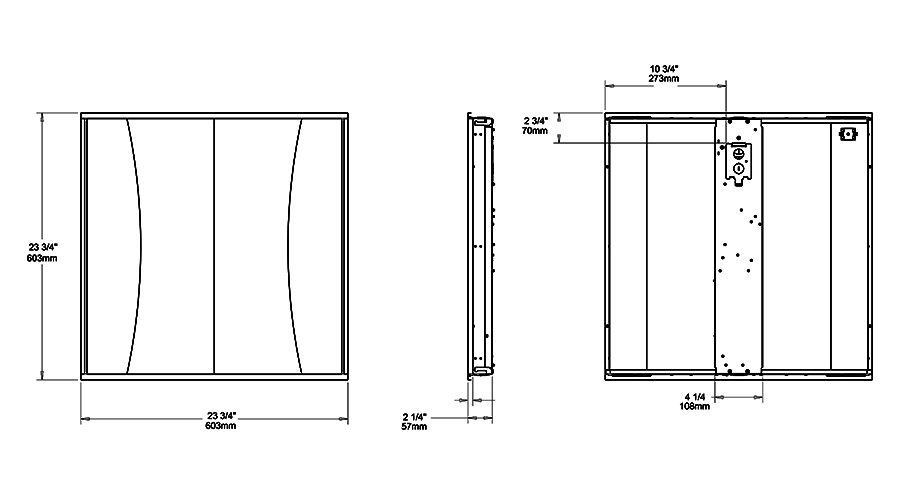

Dimensions

Weight: 16.6 lbs

Technical Specifications

Lightcloud

Lightcloud Controller Installed

Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com

Compliance

UL Listed

Suitable for dry and damp locations.

IC Rated

Suitable for direct contact with insulation

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.24A, 208V: 0.14A, 240V: 0.12A, 277V: 0.11A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

5.44% at 120V, 11.85% at 277V

Power Factor

99.7% at 120V, 97.4% at 277V

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.

Battery Backup Light Loss Factor

0.42

Surge Protection

2 kV

Construction

Operating Temperature

-4°F(-20°C) to 104°F (40°C )

Housing

Sheet metal and extruded aluminum

Reflector

Aluminum with high reflectance white finish, optimized for uniform distribution.

Lens

Frosted polystyrene

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Recessed into T-grid ceiling. Surface and recessed mounting kits available for drywall ceilings.

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
