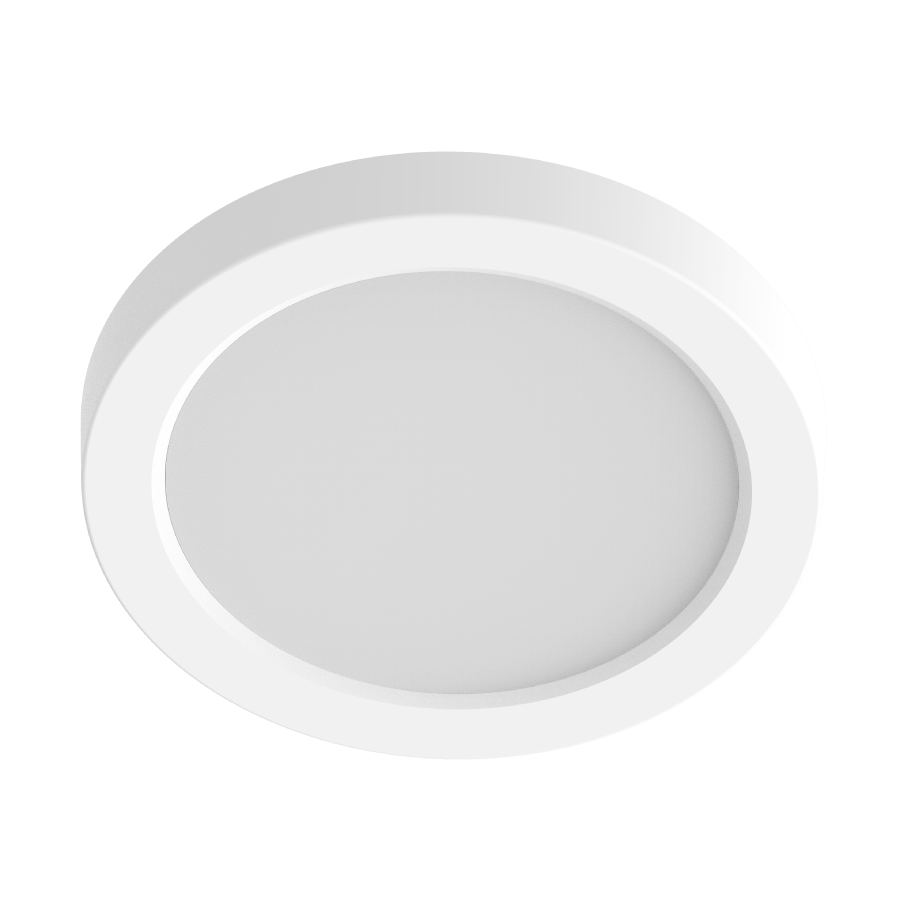

SUMOFA-9R-16-95CCT-UNV-W
SUMOFA-9R-16-95CCT-UNV-W
- Surface or Recessed mounting options
- Select from 5 field-adjustable color temperatures 2700K, 3000K, 3500K, 4000K, or 5000K
- Suitable for wet and damp locations
- Dims down to 10% on compatible TRIAC/ELV dimming systems, see Dimmer Compatibility List
- Meets California Title 24 requirements
Performance
| Watts | 16W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1,300 lm |
| Efficacy | 81 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.15A |
| 208V | 0.08A |
| 240V | 0.07A |
| 277V | 0.07A |
| Input Watts | 16W |
Dimensions
Weight: 1.3 lbs
Technical Specifications
Performance
Product Type
Surface Mount
Description
The SUMO offers a sleek, low-profile design that adds a modern look to any new construction or retrofit space. They are affordable and easy to install, with field-adjustable color temperature.
Wattage Equivalency
100W Incandescent
Input Wattage
16W
Lumens
2700K @ 1,300lm; 3000K @ 1,330lm; 3500K @ 1,360lm; 4000K @ 1,375lm; 5000K @ 1,345lm
Efficacy
2700K @ 81lm/W; 3000K @ 83lm/W; 3500K @ 85lm/W; 4000K @ 86lm/W; 5000K @ 84lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2, 60 Hz, 120V: 0.17A
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, 0-10V
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
150mA
Input Current @ 240V (mA)
248mA
Input Current @ 277V (mA)
65mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
≤30%
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than or equal to 50
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Surface mount or recessed; mounting sold separately
Construction
Size
9"
Shape
Round
Finish
White
Enclosure Material
Metal
Trim Style
Smooth
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed
Environment
Suitable for use in dry, damp, and wet environments.
IC Rated
No
Air Tight
No
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified.
Certification Model Number
DLS0093(SUMOFA-9R-16-95CCT-UNV-W)
T20 Compliant
No
California Title 24
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C1).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS Compliant
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Accessories
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
