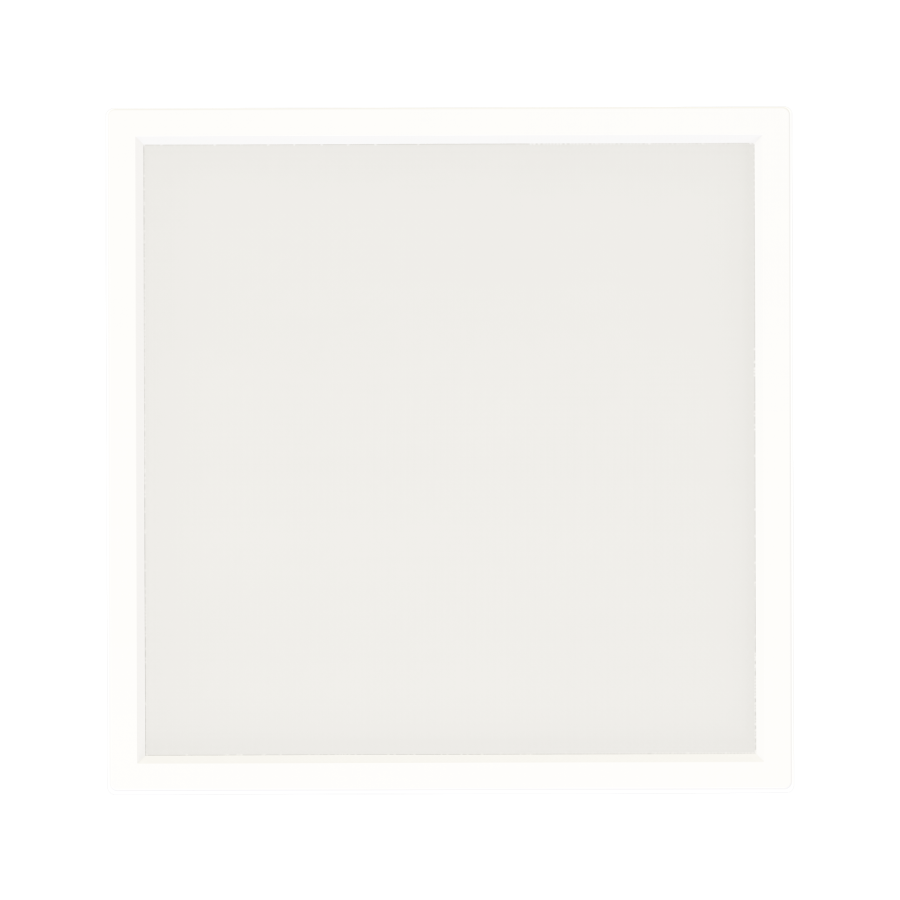

SUMO-S-7
- Super Slim design with less than 1" fixture profile
- 5 color temperatures in 1 SKU (2700/3000/3500/4000/5000K)
- Suitable for wet and damp locations
- Wet and damp location rated can be used indoors or outdoors
- Easy to install on a wide variety of junction boxes
- Color trim accessories available
- 50,000-hr lifespan, Dimmable, & Title 24 compliant
Performance
| Watts | 14W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1172-1261 lm |
| Efficacy | 84-90 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.13A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 14W |
Dimensions
Weight: 1.3 lbs
Technical Specifications
Performance
Product Type
Slim Style Edge-Lit Surface mount downlight
Description
5 selectable color temperatures in one surface mount fixture. Contemporary, low-profile design with 3 sizes and 2 forms available. Built for 120V use. TRIAC dimming compatibility and 90 CRI.
Wattage Equivalency
75W Incandescent
Input Wattage
14W
Lumens (Nominal)
1,200lm
Measured Lumens
1172lm @ 2700K
1179lm @ 3000K
1250lm @ 3500K
1261lm @ 4000K
1238lm @ 5000K
1179lm @ 3000K
1250lm @ 3500K
1261lm @ 4000K
1238lm @ 5000K
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current @ 120V, 63 Hz: 133 mA
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
130mA
Flicker
<30%
Construction
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Size
7"
Shape
Square
Finish
Matte White, fade & Scratch resistant Color trim overlays available, sold separately
Enclosure Material
Steel heatsink with robust thermal performance Polyester UV resistant Polyester trim ring
Trim Style
Smooth
Lens Finish
Frosted
Lens
Acrylic lightguide diffuses light evenly & smoothly without hotspots
LED Characteristics
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Driver on board design allows for extremely thin fixture design without a driver on back, making it simple to install on most common junction boxes. Accessory available to mount fixture to existing recessed housings, sold separately.
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
No
Air Tight
No
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified.
Certification Model Number
DLS0178(SUMO-S-7)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
