STRING34-100

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

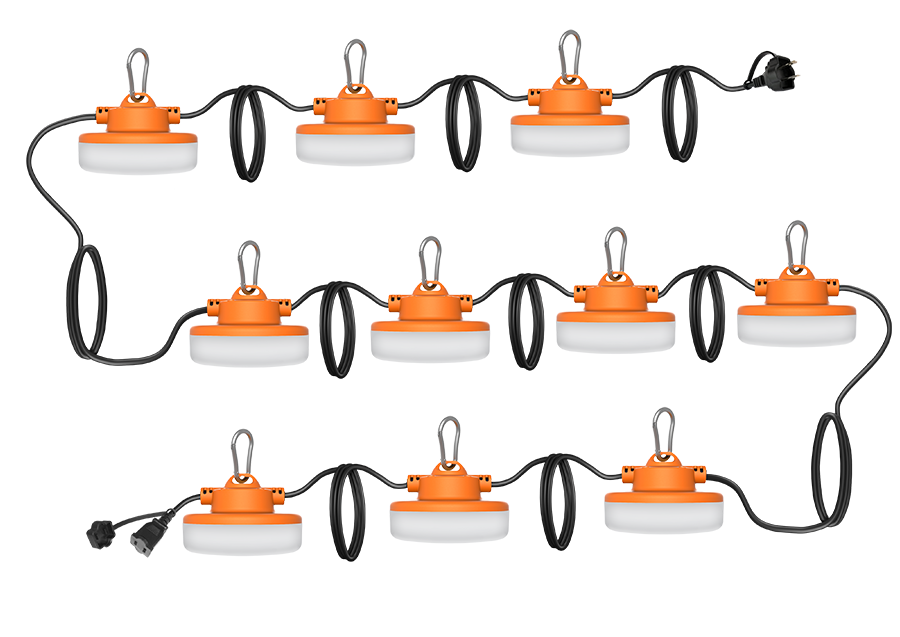

STRING34-100

Integrated hanging hook for easy mounting

Durable 10 ft. cord between lamps

ANTI-UV protection for sun exposure and IP65 rated

Linkable strands up to 390W (300ft length) using AWG18

Industrial grade, high-impact design ANSI 2-prong plug and receptacle with weatherproof cover

View Technical Specs

View Price & Availability

Performance

Watts	130W
Color Temp	5000K
Lumens	16,000 lm
Efficacy	123
Color Accuracy	80 CRI
L70 Lifespan	18,000 Hours

Type	Constant Current
120V	2.4A
208V
240V
277V
Input Watts	130W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 7.4 lbs

Technical Specifications

Performance

Description

Upgrade traditional work lights with efficient, portable LED string lights.

Product Type

Temporary String Light

Wattage Equivalency

Equivalent to 400W Metal Halide

Input Wattage

130W

Lumens

16,000lm

Efficacy

123lm/W

Lifespan

18,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Electrical

Dimmable

Input Voltage

120V

Operating Frequency

60Hz

Operating Temperature

-40°F to 104°F (-40°C to -40°C)

LED Characteristics

Color Temperature

5000K

Color Accuracy (CRI)

80 CRI

R9 Value

High color performance with R9 no less than 0

Color Consistency

<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Beam Angle

120°

Installation

Mounting

Integrated hanging hook

Base Type

Industrial grade, high-impact design ANSI 2-prong plug and receptacle with weatherproof cover. No ground required; housing is made of polycarbonate material.

Construction

Shape

Round

Housing Material

Polycarbonate

Connective Adapter

Linkable strands up to 390W (300ft length) using AWG1

Nominal Length

100 ft

Lens Finish

Frosted

Compliance

Environment

Suitable for use in dry, damp, and wet environments.

IP Rating

Ingress protection rating of IP65 for dust and water

California Energy Commission (CEC) Status

Lawful for Sales in California

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Other

2-Year Limited Warranty

The RAB 2-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
