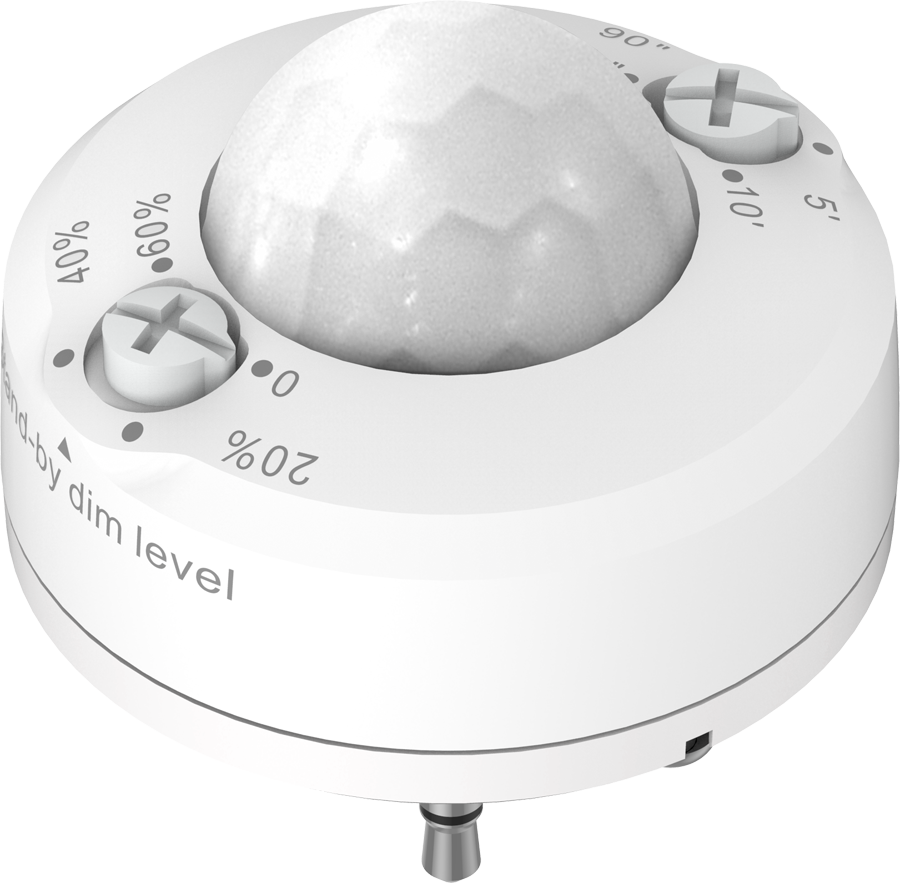

SPIR-S
- Motion detection
- 360° detection through walls and objects
- Continuous detection pattern
- On-off functionality
- Standby level options: off, 20% dim, 40% dim, or 60% dim
- Hold time options for motion detection: 30 seconds, 90 seconds, 5 minutes, or 10 minutes
- If no motion is detected: lamp will be switched to 0-60% brightness
- If any motion is detected: lamp returns to 100% output to pre-defined hold time

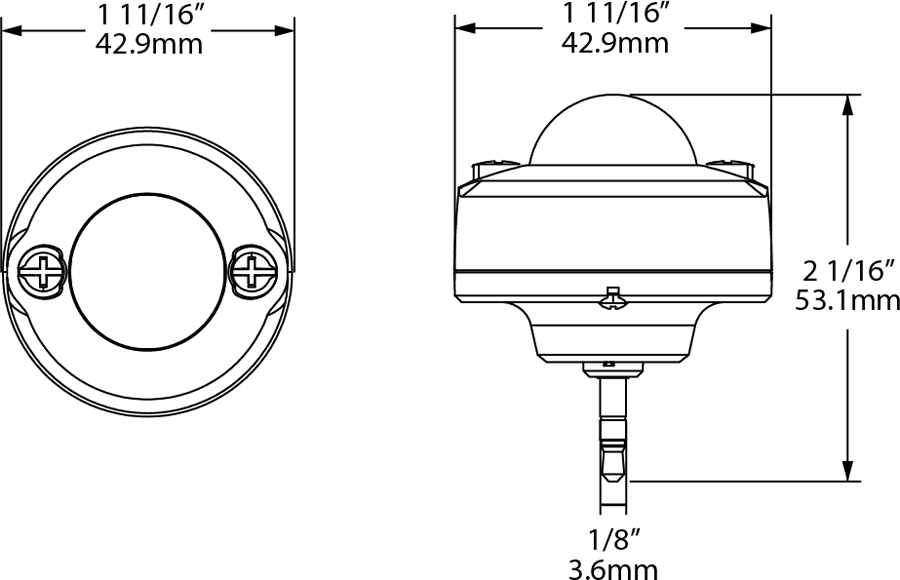

Dimensions
Technical Specifications
Performance
Product Type
PIR Sensor
L70 Lifespan
50,000 Hours
Electrical
Input Voltage
15VDC
Max Input Current
0.1A
Max Output Current
0.02A
Detection Angle
120 degrees
Max Mounting Height
19.7 ft
Detection Radius
13.12 ft
Standby Dim Levels
0/20%/40%/60%
Input Frequency
5.8 GHz +/- 75MHz
Output Voltage
10VDC
Operating Frequency
5.8GHz
Operating Current
20mA
Transmit Power
1mW
Compliance
California Energy Commission (CEC) Status
Lawful for Sales in California
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
