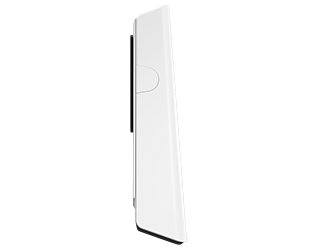

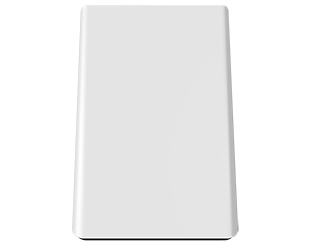

SLIMYAW

Wildlife-friendly amber light

100,000-hour LED Life

0-10V dimming, standard

Selectable on/off photocell

10-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	26/18/12W
Color Temp	Amber
Lumens	1,190/1,144/922 lm
Efficacy	40.8/53.2/64.5 lm/W
Color Accuracy
L70 Lifespan	100,000 Hours

Type	Constant
120V	0.24A/0.15A/0.11A
208V	0.13A/0.09A/0.07A
240V	0.11A/0.08A/0.06A
277V	0.10A/0.07A/0.05A
Input Watts	29.2 /21.5 /14.3 W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.9 lbs

Technical Specifications

Field Adjustability

Field Adjustable (Wattage)

Field adjustable light output in 3 discrete steps:
26/18/12W (factory default 26W)

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Photocell

120-277V selectable photocell that can be turned on and off.

Surge Protection

4 kV

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Wavelength

585-595nm

Housing

Aluminum

Lens

Acrylonitrile styrene acrylate (ASA) /Acrylonitrile butadiene styrene (ABS)

Reflector

Mirror finish on polycarbonate

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Compliance

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

ADA Compliant

Meets ADA Requirements for wall-mounted luminaires.

IP Rating

Ingress protection rating of IP65 for dust and water

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Optical

BUG Rating

26W: B1 U0 G0
18W: B1 U0 G0
12W: B0 U0 G0

Installation

Mounting

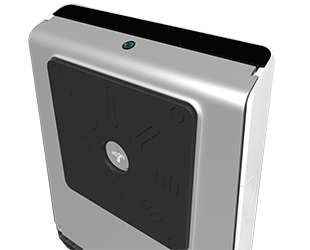

Heavy-duty mounting bracket with spring-hinged housing and "kick stand" allow for easy installations. Conduit entries on back and both sides.

Other

10-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
