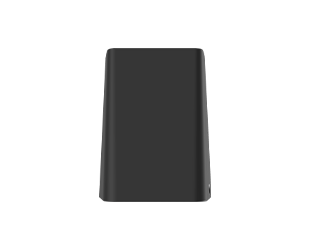

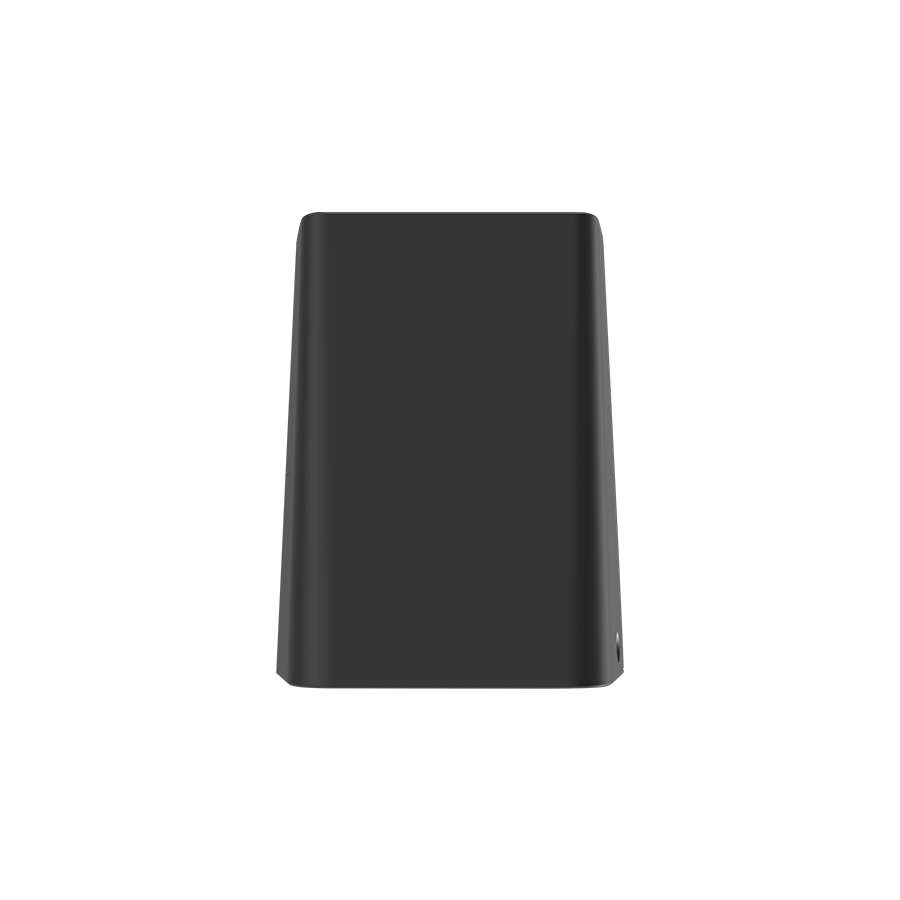

SLIMXS
SLIMXS
12W 3000/4000/5000K
- 100,000-Hour LED lifespan
- 0-10V dimming standard
- 5-Year, no-compromise warranty
Performance
| Watts | 12/18/25W |
| Color Temp | 3000/4000/5000K |
| Lumens | 1382-3444 lm |
| Efficacy | 116.1-142.9 lm/W |
| Color Accuracy | 80-83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.09A/0.14A/0.20A/0.21A |
| 208V | 0.07A/0.08A/0.10A/0.13A |
| 240V | 0.06A/0.07A/0.09A/0.11A |
| 277V | 0.06A/0.07A/0.08A/0.10A |
| Input Watts | 11.5-25.3W |

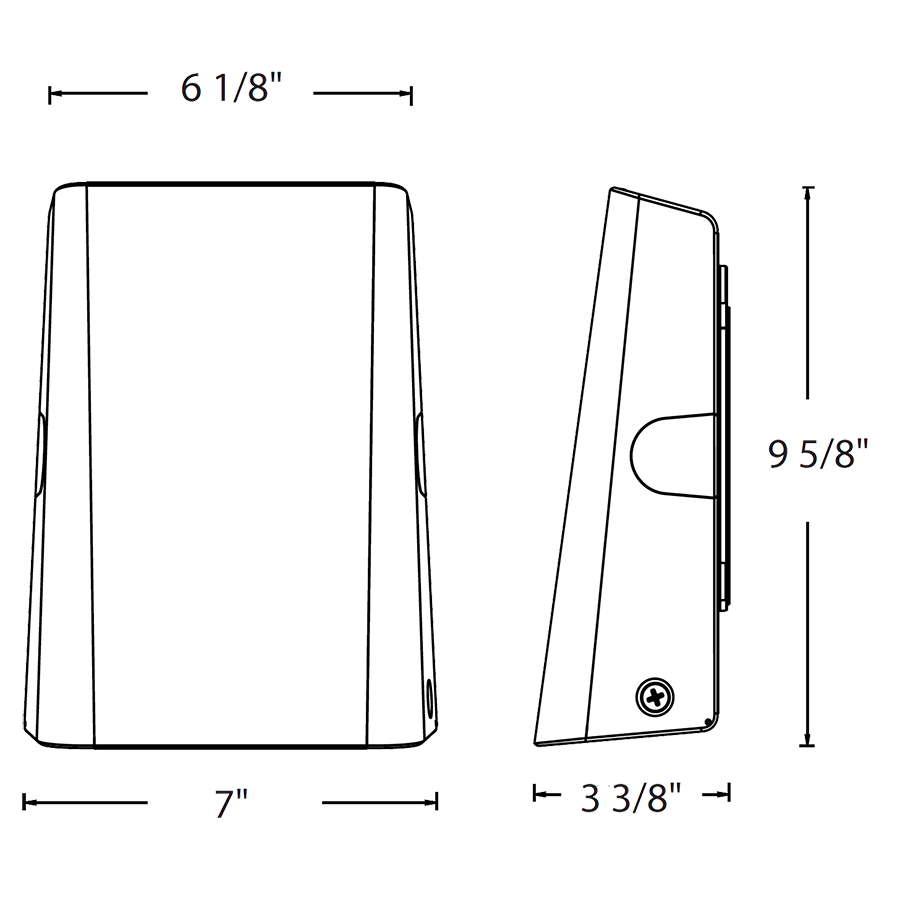

Dimensions
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
25/18/12W (factory default 18W)
Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K)
Field-adjustable optics: -20° to +20°
On/Off Photocell (factory default "Off")
25/18/12W (factory default 18W)
Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K)
Field-adjustable optics: -20° to +20°
On/Off Photocell (factory default "Off")
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Electrical
Driver
25W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.20A, 208V: 0.13A, 240V: 0.11A, 277V: 0.10A
18W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.14A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A
12W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.09A, 208V: 0.08A, 240V: 0.07A, 277V: 0.06A
18W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.14A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A
12W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.09A, 208V: 0.08A, 240V: 0.07A, 277V: 0.06A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Photocell
120-277V selectable photocell that can be turned on and off.
Aux Power Supply
Yes
Dim to Off
Yes
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Die-cast aluminum
Lens
Tempered glass
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
ADA Compliant
Meets ADA Requirements for wall-mounted luminaires.
IP Rating
Ingress protection rating of IP65 for dust and water
Dark Sky Approved
Conforms to the requirements listed by the International Dark-Sky Association for "Dark Sky" approval. The Fixture Seal of Approval provides objective, third-party certification for luminaries that minimize glare, reduce light trespass, and don't pollute the night sky.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Installation
Mounting
Heavy-duty mounting bracket with spring-hinged housing and "kick stand" allow for easy installations. Conduit entries on back and both sides.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
