SLIM15

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

SLIM15

34W 5000K

Selectable Wattages

Full cutoff

120V

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	34/25/13W
Color Temp	5000K
Lumens	3,907/2,827/1,493 lm
Efficacy	110.7/115.4/117.6 lm/W
Color Accuracy	85/86/86 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.30A/0.21A/0.11A
208V
240V
277V
Input Watts	35.3/24.5/12.7W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.0 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
34/25/13 (factory default 34W)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Performance

Lifespan

50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

34W: Replaces up to 150W Metal Halide (MH) or 100W High Pressure Sodium (HPS)

25W: Replaces up to 100W Metal Halide (MH) or 100W High Pressure Sodium (HPS)

13W: Replaces up to 70W Metal Halide (MH) or 50W High Pressure Sodium (HPS)

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Precision die-cast aluminum / Polycarbonate

Lens

Polycarbonate lens

Reflector

Mirror finish on polycarbonate

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

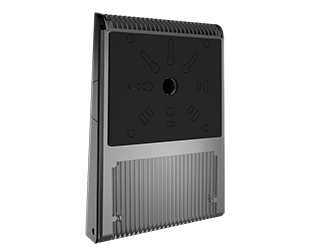

Hinged wiring access and conduit entries on the back sides, top and bottom make installation a snap

Electrical

Driver

Integrated driver, 60 Hz, 120V:
34W: 0.30A
25W: 0.21A
13W: 0.11A

THD

12.48% at 120V

Power Factor

99.1% at 120V

Surge Protection

4 kV

Optical

BUG Rating

34W: B2 U0 G1
25W: B1 U0 G1
13W: B1 U0 G0

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
