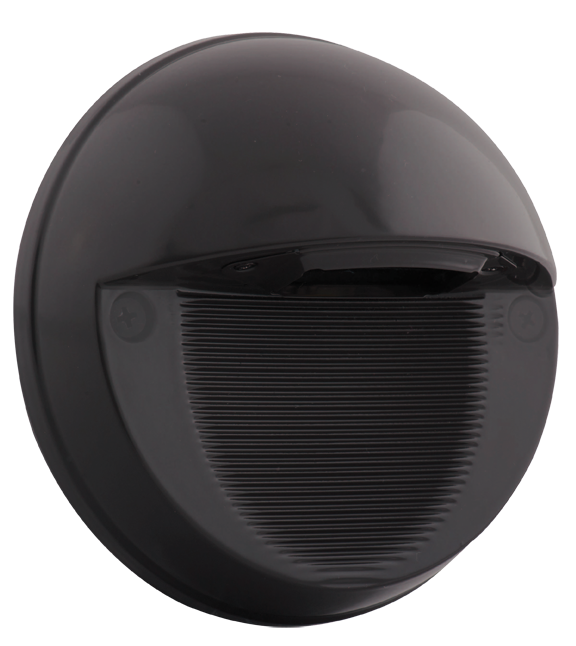

SLEDR5N
- 5 Watt, High output LED
- 100,000-hour life
- Superior heat sinking with die cast aluminum housing
- Meets ADA Requirements
- Junction Box Not Included
Performance
| Watts | 5W |
| Color Temp | 4000K (Neutral) |
| Lumens | 159 lm |
| Efficacy | 30.6 lm/W |
| Color Accuracy | 85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.1A |
| 208V | 0.06A |
| 240V | 0.05A |
| 277V | 0.049A |
| Input Watts | 5.2W |
Dimensions
Weight: 1.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft. of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 13W CFL or 60W Incandescent
Electrical
Driver
4W high output long life LED. Driver Constant Current, Class 2, 50-60 Hz, 100-240 VAC 0.18 amps.
Voltage
120-277V
Surge Protection
1000 Volts
Construction
Finish
Formulated for high durability and long-lasting color
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Green Technology
Mercury and UV free. RoHS-compliant components.
Housing
Precision die-cast aluminum housing and mounting plate (junction box not included)
Gaskets
High-temperature silicone
LED Characteristics
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Lumen Maintenance
The LED will deliver 70% of its initial lumens at 100,000 hours of operation
Color Temperature
4000K
Other
Patents
The design of the SLED Lights are protected by U.S. Pat. D612,974, CA Pat. 133100, and China Pat. ZL201030129138.4.
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Optical
BUG Rating
B0 U1 G0
