Performance
| Watts | 35/30/25W |
| Color Temp | 3500/4000/5000K |
| Lumens | 3,435-4,955 lm |
| Efficacy | 133.24-149.8 lm/W |
| Color Accuracy | 84-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 0.30A/0.25A/0.21A |
| 208V | 0.17A/0.15A/0.12A |
| 240V | 0.15A/0.13A/0.10A |
| 277V | 0.13A/0.12A/0.10A |
| Input Watts | 24.4-35.49W |
Dimensions
Weight: 11.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-QOHE9L
DLC Product Code: S-QOHE9L
Electrical
Driver
35W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.30A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A
30W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A
25W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.21A, 208V: 0.12A, 240V: 0.10A, 277V: 0.10A
30W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A
25W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.21A, 208V: 0.12A, 240V: 0.10A, 277V: 0.10A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
2.87% at 120V, 3.07% at 277V
Power Factor
99.74% at 120V, 96.42% at 277V
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120.
Surge Protection
2.5 kV
Construction
Housing
Steel sheet metal
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Reflector
High-reflectance, powder-coated finish, optimized for uniform light distribution
Lens
Polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting

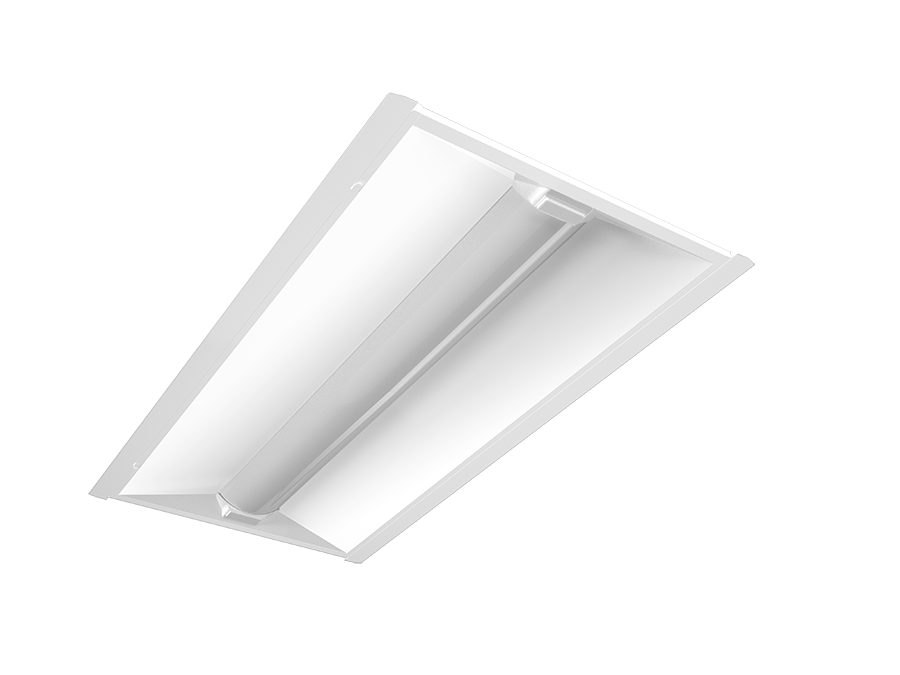

Retrofits into the existing housing
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
