RDCANIC4R

IC rated for direct contact with insulation

Quick connect provided for electrical connection to the LED Trim

Airtight in accordance to ASTM E283

Damp Location (Wet location when used with compatible luminaire)

24-1/2" bar hangers included with captive nails and alignment foot

View Technical Specs

View Price & Availability

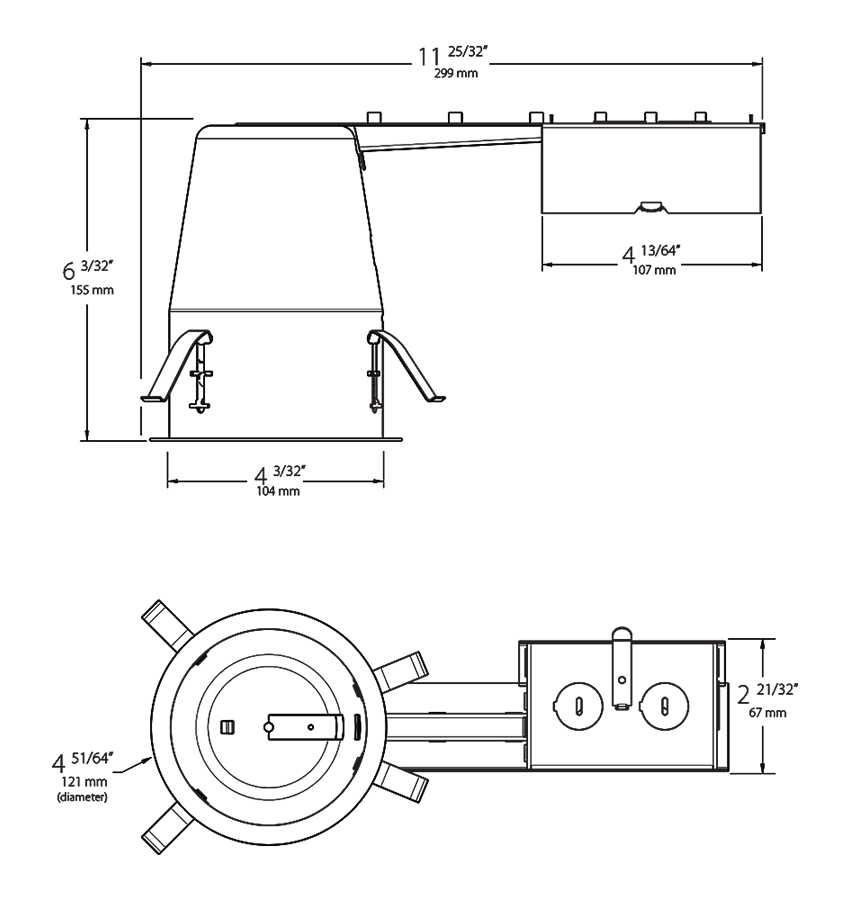

Dimensions

Weight: 1.1 lbs

Technical Specifications

Performance

Product Type

LED Remodel Housings

Description

Standard IC Rated housings suitable for use with LED Recessed Retrofits

Electrical

Input Voltage

120V

Operating Temperature

122°F (50°C) max.

Construction

Mounting

Remodel housing

Size

Shape

Round

Housing

0.040 aluminum housing with riveted cap adjusts for ceiling thicknesses from 5/8" to 1-1/4"

Nailer Bars

Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Hanger bars have T-Bar slot and alignment feet. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allows easy installation in a suspended ceiling.

Junction Box

Prewired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2" trade size knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.

Romex Strain Relief

Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.

Installation

Base Type

Quick Connector

Compliance

Listings

UL Listed

Environment

Suitable for use indoors in dry and damp environments.

IC Rated

Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Air Tight

Housing certified Air Tight as per ASTM E283

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
