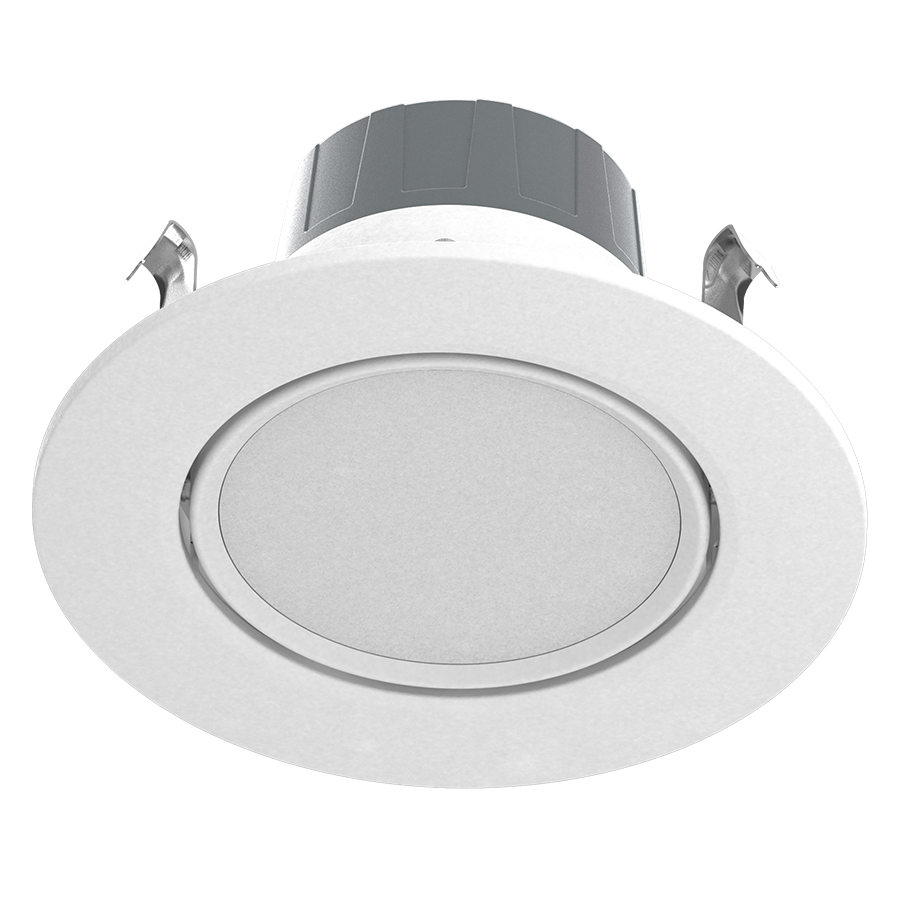

RA4R89FA120WS
RA4R89FA120WS
- Use to replace traditional halogen and incandescent light sources
- Durable metal construction: dent and scratch resistant
- 5 Color temperature selectable 2700K, 3000K, 3500K, 4000K, & 5000K
- Compatible with most standard recessed housings
- Color trims sold separately
Performance
| Watts | 8W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 700 lm |
| Efficacy | 88 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.07A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 8W |
Dimensions
Weight: 0.4 lbs
Technical Specifications
Performance
Product Type
Recessed Retrofit
Description
Contractor-grade adjustable gimbal retrofit downlights offered with up to 5 field selectable color temperatures in 1 model.
Wattage Equivalency
65W Incandescent
Input Wattage
8W
Lumens
2700K @ 719lm; 3000K @ 731lm; 3500K @ 746lm; 4000K @ 752lm; 5000K @ 768lm
Efficacy
2700K @ 97lm/W; 3000K @ 99lm/W; 3500K @ 103lm/W; 4000K @ 104lm/W; 5000K @ 103lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, 60 Hz, 120V, 120V: 0.07 A
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dims down to 10% on compatible TRIAC/ELV system.
See Dimmer Compatibility List.
See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
65mA
Operating Temperature
-22°F to 104°F (-30°C to 40°C)
LED Characteristics
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than or equal to 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Recessed Housing
Construction
Size
4"
Shape
Round
Finish
White
Enclosure Material
Metal
Trim Style
Smooth
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Cut Out Template Size
4 5/16"
Compliance
Listings
UL Recognized, UL Classified
IC Rated
No
Air Tight
No
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified
DLC Listed
No
Certification Model Number
DLG0010(RA4R89FA120WS)
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
Accessories
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
