R20-WS3-E26-6CCT-DIM

Spec Sheet IES File Family Spec Sheet Spec Sheet EZ Layout

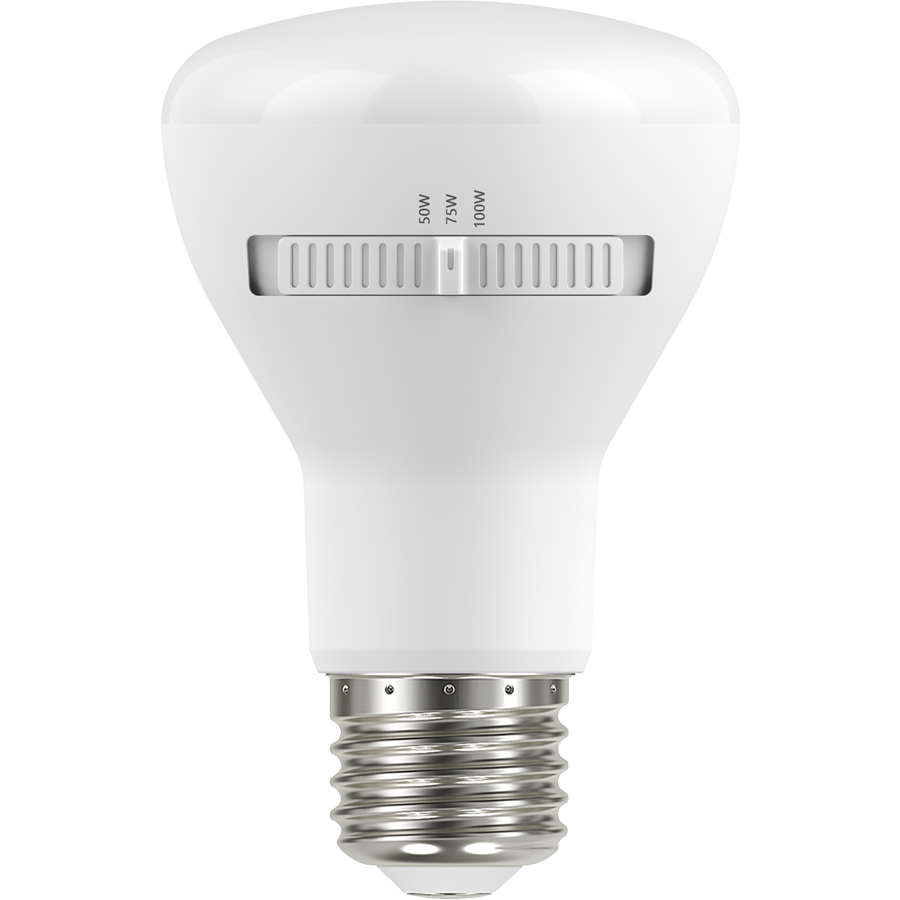

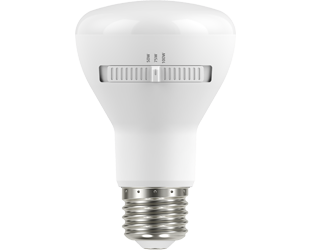

Selectable wattage and color temp

Energy-efficient replacement for incandescent and halogen lamps

Produces rich and vibrant colors >90CRI

Longer LED lifespan minimizes replacement and maintenance costs

TRIAC/ELV dimmable down to 10%, see Dimmer Compatibility List

View Technical Specs

View Price & Availability

Performance

Watts	12/9/5.5W
Color Temp	2700/3000/3500/4000/5000/6500K
Lumens	1,400/950/500 lm
Efficacy	116
Color Accuracy	90 CRI
L70 Lifespan	25,000 Hours

Type
120V
208V
240V
277V
Input Watts	12/9/5.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.2 lbs

Technical Specifications

Performance

Product Type

Reflector, Field-Adjustable

Description

Ultimate flexibility with field-adjustable wattage and color temperature.

Wattage Equivalency

50/75/100W Incandescent

Input Wattage

12/9/5.5W

Lumens (Nominal)

1,400/950/500lm

Efficacy

116lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results

Electrical

Power Factor

0.7

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Temperature

-4°F to 104°F (-20 to 40°C)

Emergency Operation

Not for emergency use.

LED Characteristics

Beam Angle

120°

Color Temperature

Default: 3000K

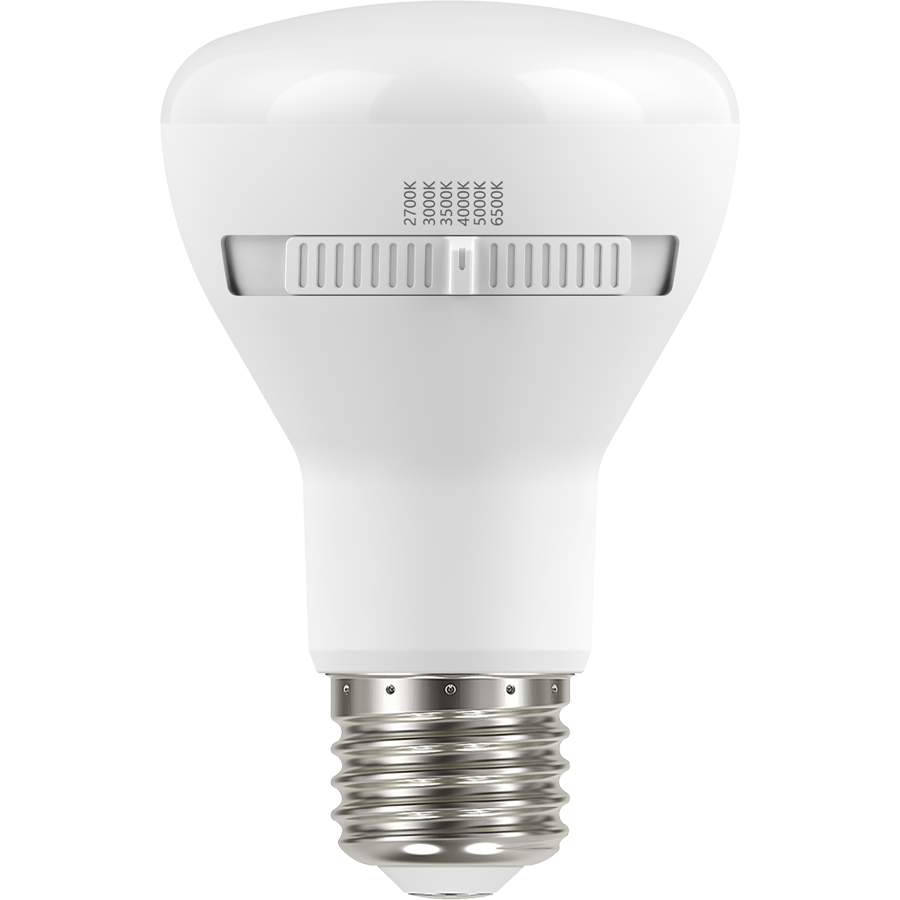

Field adjustable via dip switch 2700/3000/3500/4000/5000/6500K

Color Tuning

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 no greater than 0

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Base Type

E26 Edison

Construction

Shape

BR20

Finish

White

Endcap Material

Corrosion-resistant aluminum endcaps

Enclosure Material

Shatter-resistant polycarbonate housing

Lens Finish

Frosted

Compliance

Listings

UL1993

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

Certification Model Number

R20-WS3-E26-6CCT-DIM

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
