R16PF - RAB Lighting

R16PF

Spec Sheet Instructions Spec Sheet

R16PF large main

R16PF

Reflectors tailor the Haybay to specific applications:

Downlight only, uplight + downlight, and high or low mounting heights.

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

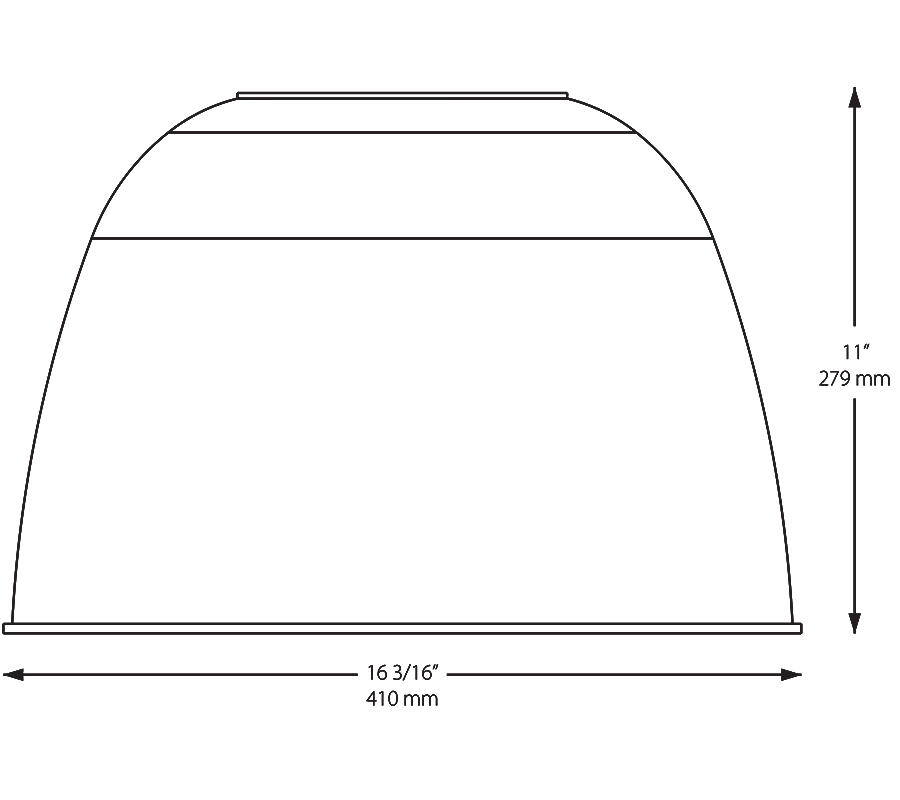

Dimensions

Link to Dimension Drawing

Weight: 1.1 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

Construction

Reflector

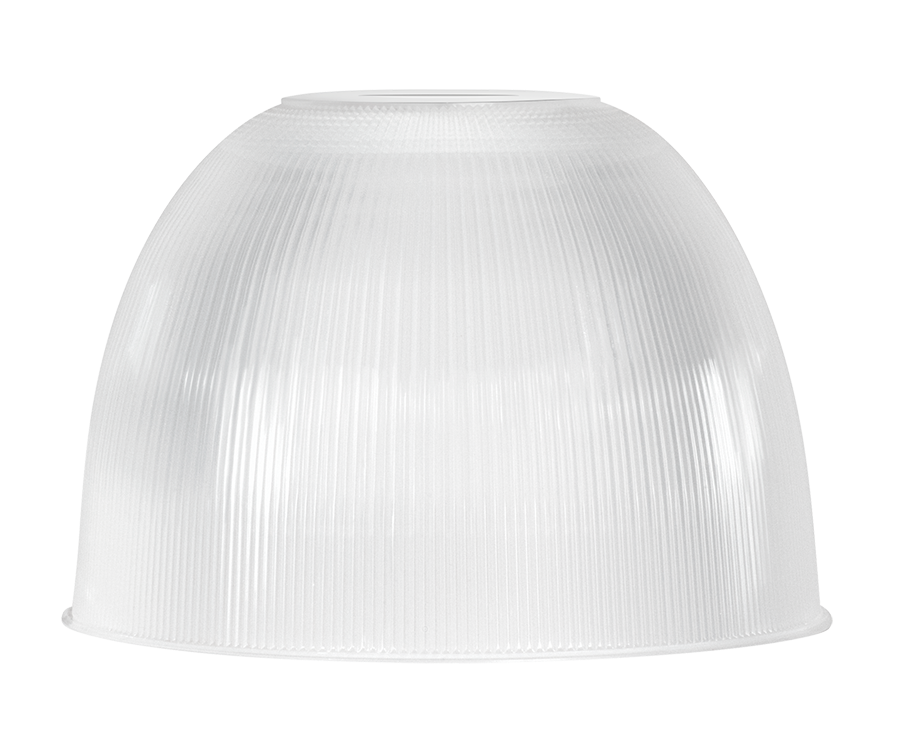

Frosted Prismatic Acrylic Reflector 11" high

Reflector Component

This component must be ordered with HAYBAY fixture to make a complete fixture. See here for HAYBAY fixtures.

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use 12 hours a day, 5 days a week in up to 50°C and for 24/7 use in up to 40°C
