PS4-11-15WT
PS4-11-15WT
- Designed for ground mounting
- Heavy duty TGIC polyester coating
- Reinforced hand holes with grounding lug and removable cover for easy wiring access
- Pole caps, base covers & bolts are sold separately
- Custom manufactured for each application

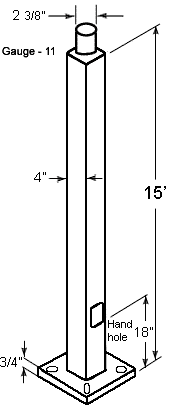

Dimensions
Weight: 106.0 lbs
Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Construction
Shaft
46,000 p.s.i. minimum yield.
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
Slotted base plates 36,000 p.s.i.
Shipping Protection
All poles are shipped in individual corrugated cartons to prevent finish damage
Color
Bronze powder coating
Tenon
Welded 2 3/8" tenon included
Height
15 ft
Gauge
11
Wall Thickness
1/8"
Shaft Size
4"
Hand Hole Dimensions
3" x 5"
Bolt Circle
8 1/2"
Base Dimension
8"
Weight
134 lbs
Anchor Bolt
Galvanized anchor bolts and galvanized hardware and anchor bolt template. All bolts have a 3" hook.
Anchor Bolt Templates
WARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Pre-Shipped Anchor Bolts
Bolts can be pre-shipped upon request for additional freight charge
Max EPA's/Max Weights
70MPH 17.4 ft/450 lb.
80MPH 12.5 ft/440 lb.
90MPH 9.0 ft/440 lb.
100MPH 6.6 ft/440 lb.
110MPH 4.8 ft/435 lb.
120MPH 3.4 ft/435lb.
130MPH 2.3 ft/435 lb.
140MPH 1.4 ft/430 lb.
150MPH 0.8 ft/420 lb
80MPH 12.5 ft/440 lb.
90MPH 9.0 ft/440 lb.
100MPH 6.6 ft/440 lb.
110MPH 4.8 ft/435 lb.
120MPH 3.4 ft/435lb.
130MPH 2.3 ft/435 lb.
140MPH 1.4 ft/430 lb.
150MPH 0.8 ft/420 lb
Other
Terms of Sale
Pole Terms of Sale is available online.
