PS4-11-10D2
PS4-11-10D2
- Designed for ground mounting
- Heavy duty TGIC polyester coating
- Reinforced hand holes with grounding lug and removable cover for easy wiring access
- Pole caps, base covers & bolts are sold separately
- Custom manufactured for each application

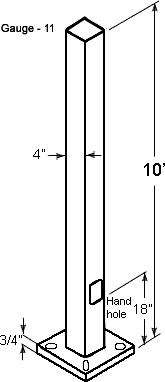

Dimensions
Weight: 72.8 lbs
Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Construction
Shaft
46,000 p.s.i. minimum yield.
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
Slotted base plates 36,000 p.s.i.
Shipping Protection
All poles are shipped in individual corrugated cartons to prevent finish damage
Color
Bronze powder coating
Height
10 ft
Weight
73 lbs
Gauge
11
Wall Thickness
1/8"
Shaft Size
4"
Hand Hole Dimensions
3" x 5"
Bolt Circle
8 1/2"
Base Dimension
8"
Anchor Bolt
Anchor bolt kits are sold separately. Order ABK4-11-BCK-S4 for anchor bolt kits.
Anchor Bolt Templates
WARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 28.8 ft/800 lb.
80MPH 21.6 ft/510lb.
90MPH 16.5 ft/510 lb.
100MPH 12.9 ft/510 lb.
110MPH 10.3 ft/500 lb.
120MPH 8.3 ft/495lb.
130MPH 6.7 ft/495 lb.
140MPH 5.5 ft/485 lb.
150MPH 4.5 ft/480 lb
80MPH 21.6 ft/510lb.
90MPH 16.5 ft/510 lb.
100MPH 12.9 ft/510 lb.
110MPH 10.3 ft/500 lb.
120MPH 8.3 ft/495lb.
130MPH 6.7 ft/495 lb.
140MPH 5.5 ft/485 lb.
150MPH 4.5 ft/480 lb
Other
Terms of Sale
Pole Terms of Sale is available online.
