PMKEZPAN1X4

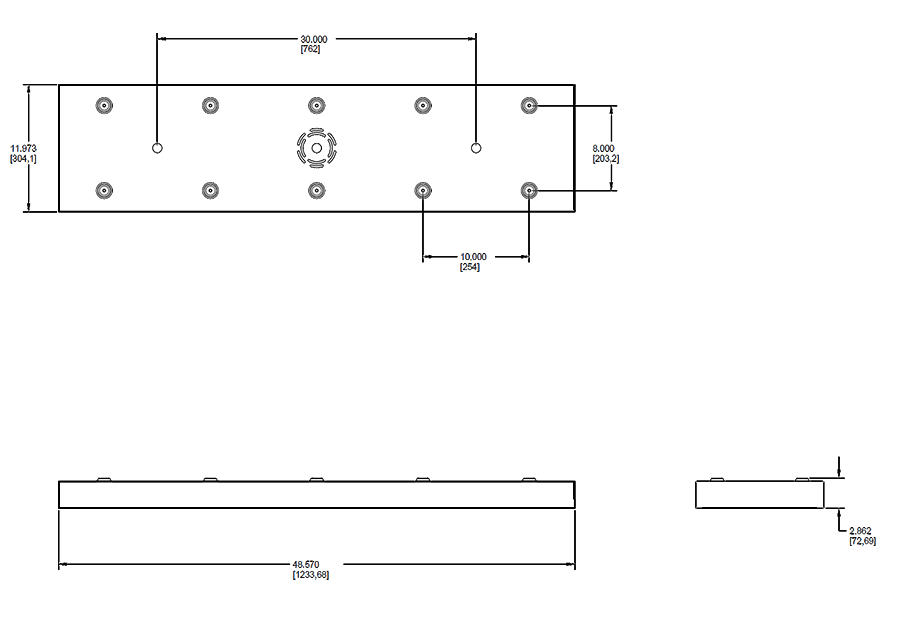

Dimensions
Weight: 17.3 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
Construction
Housing
Powder coated 20GA cold rolled steel
Kit includes the following items
1X Safety tether cable
1X Junction box canopy strap
1X Power cable 10ft length
8X Adjustable cable grippers
4X Aircraft cable 10ft length
1X Canopy 7" diameter
1X Power Cable Strain Relief
1X 1/4-20 Acorn Nut
1X 8-32 Nut
1X 8-32 Ground Screw
8X 1/4-20 x 1/4" Pan head phillips screws
1X 1/4-20 x 1.5" Pan head phillips screw
1X 1/4" External tooth washer
2X #8 External tooth washer
1X Junction box canopy strap
1X Power cable 10ft length
8X Adjustable cable grippers
4X Aircraft cable 10ft length
1X Canopy 7" diameter
1X Power Cable Strain Relief
1X 1/4-20 Acorn Nut
1X 8-32 Nut
1X 8-32 Ground Screw
8X 1/4-20 x 1/4" Pan head phillips screws
1X 1/4-20 x 1.5" Pan head phillips screw
1X 1/4" External tooth washer
2X #8 External tooth washer
Assembly
Minor assembly required
Finish
Formulated for high durability and long-lasting color
Performance
Description

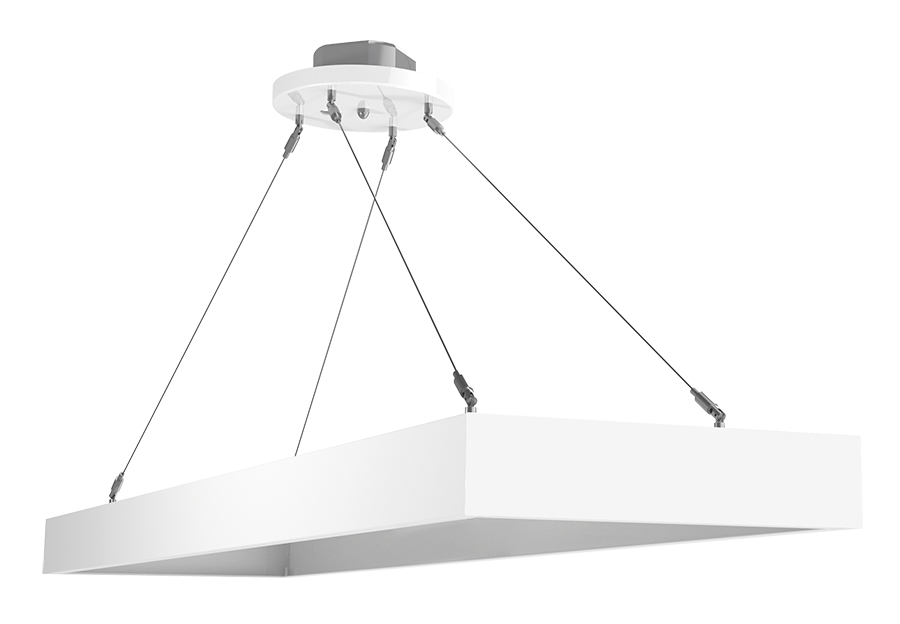

EZPAN 1X4 pendant mounting kit for drywall ceilings
Other
Compatibility
For EZPAN fixtures with options, please consult factory for compatibility with mounting kits. Compatible also with T34, T34FA and T34FAHE.
