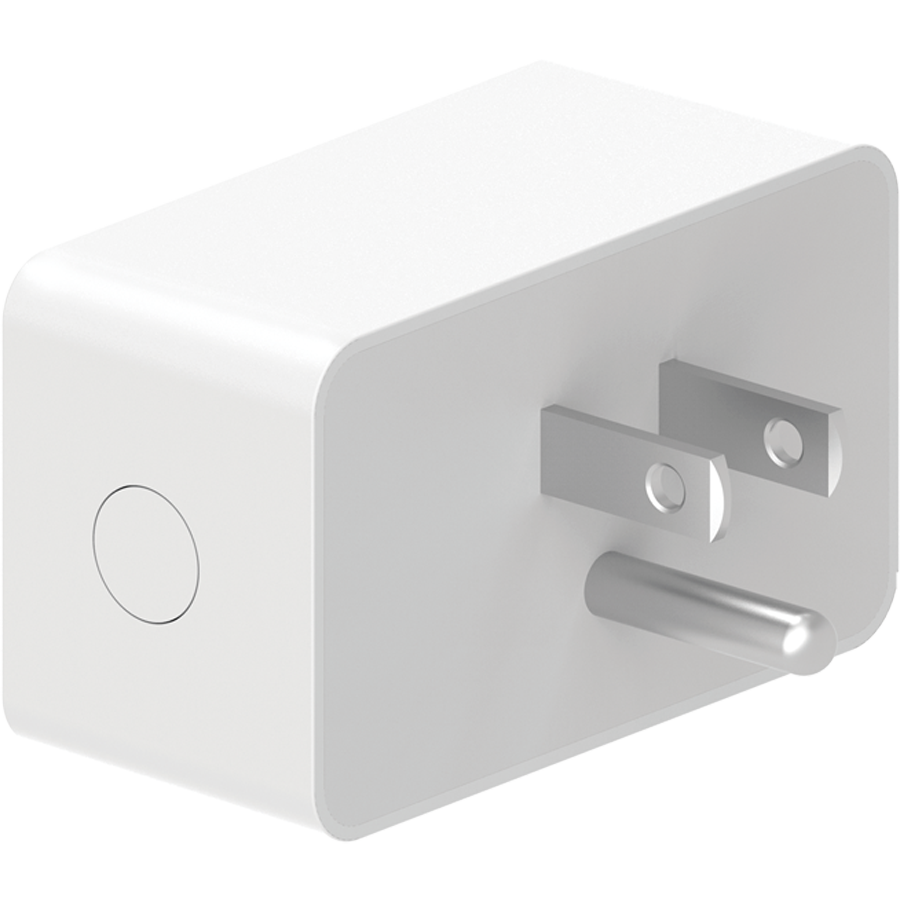

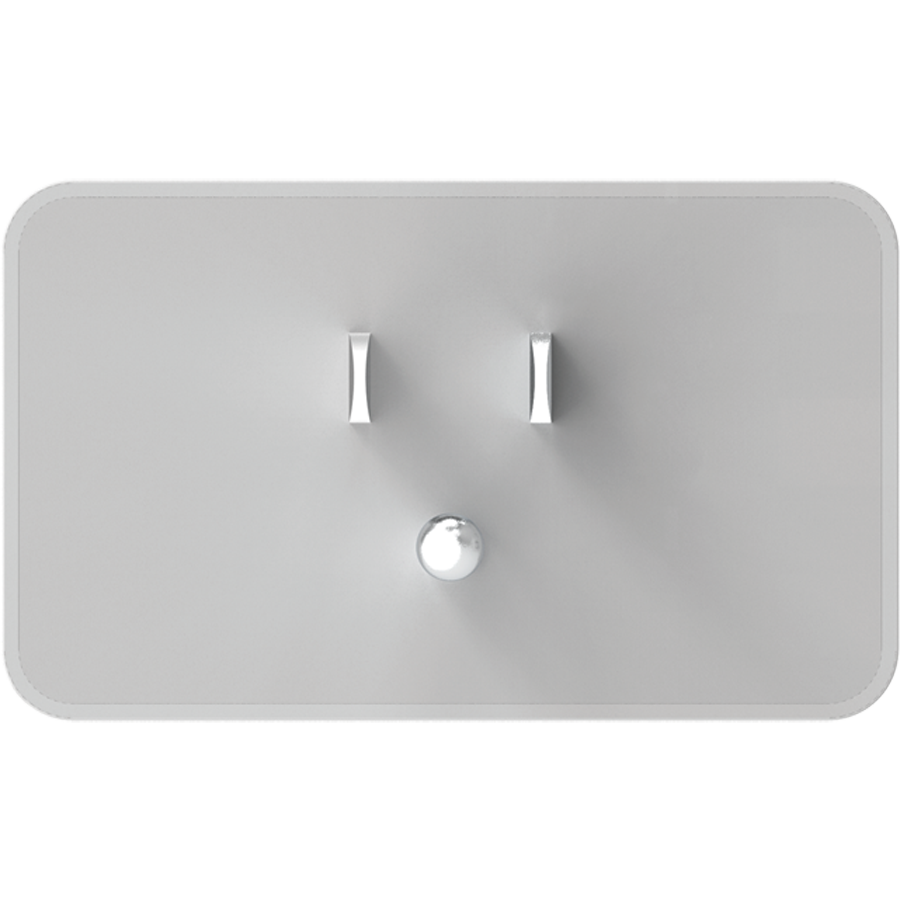

PLUGS/LCB
PLUGS/LCB
- Turns any standard outlet into a smart, app-controlled receptacle
- Wirelessly configure on/off schedules via the Lightcloud Blue mobile app
- Sensor-based automation and occupancy control through the app
- Scalable mesh network — add devices to cover entire buildings

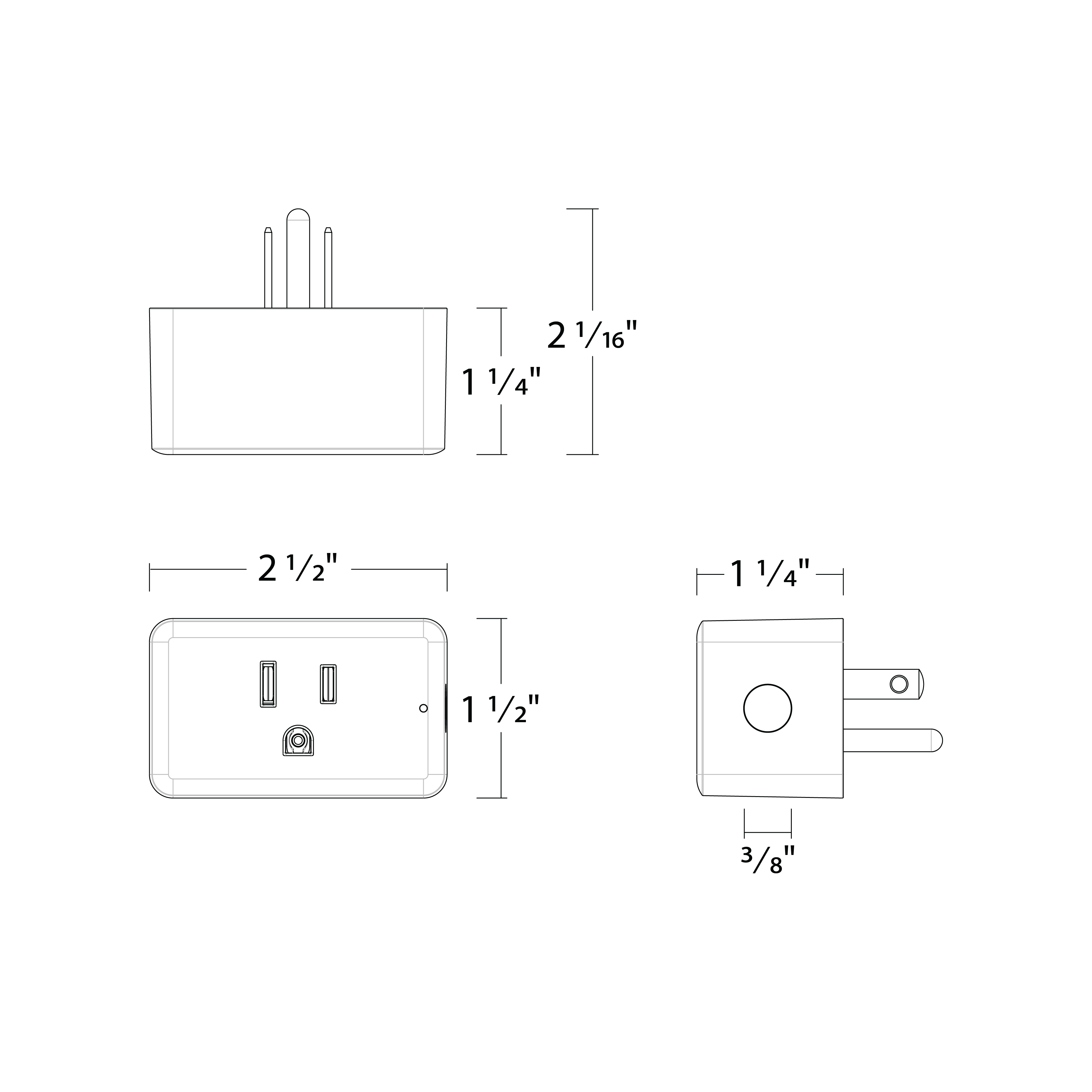

Dimensions
Weight: 0.1 lbs
Technical Specifications
Lightcloud
Gateway Required
No
Communication Protocol
Bluetooth®
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the network. Building materials such as brick, concrete, and steel construction or heavy vegetation, bushes or trees may require additional Lightcloud Blue devices to extend around an obstruction.
Performance
Product Type
Smart Plug
Description
Lightcloud® Blue smart plug for wireless dimming control, scheduling, and sensor-based automation via the mobile app.
Applications
Plug in a table or floor lamp for dimmable, scheduled ambient lighting in offices, lobbies, or hospitality spaces
Load Switching Capacity
400W
Electrical
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V
15A
Installation
Mounting
Plug into NEMA 1-15R or NEMA 5-15R receptacle outlet.
Base Type
Type A, NEMA 1-15, 2-prong plug with NEMA 5-15P receptacle port.
Construction
Shape
Cuboid
Finish
White
Enclosure Material
Polycarbonate, Copper
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry environments.
Certification Model Number
PLUGS/LCB
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
2-Year Limited Warranty
The RAB 2-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
