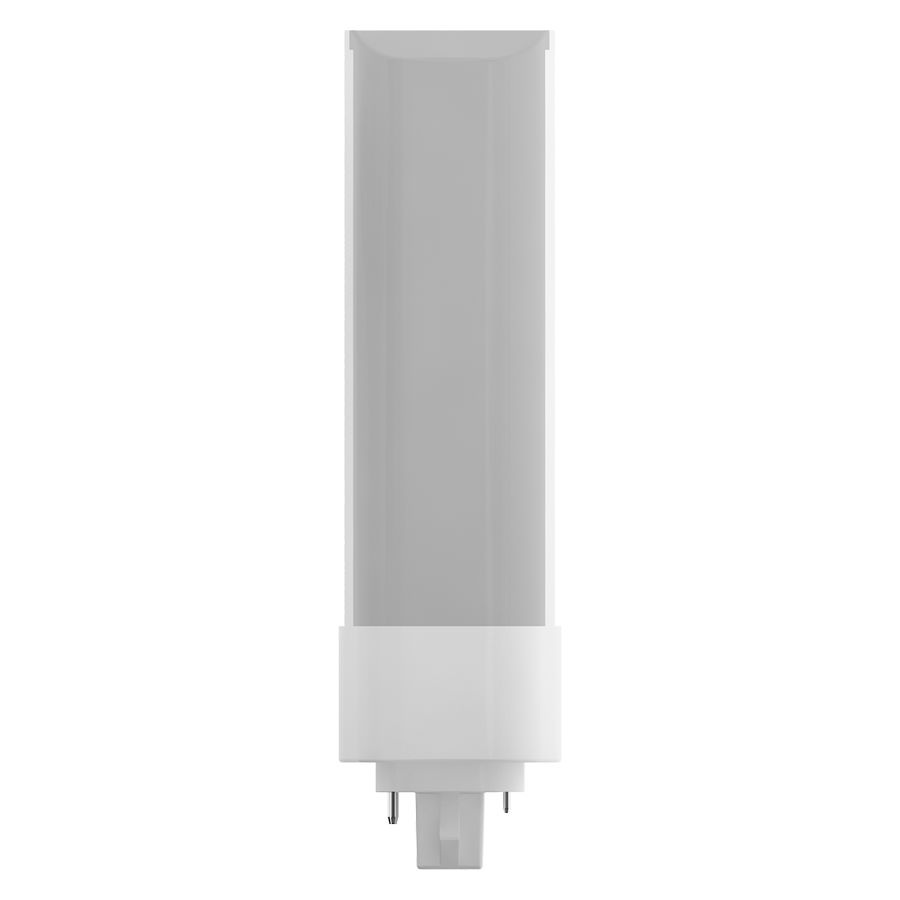

PLT-15.5-H-835-BYP
PLT-15.5-H-835-BYP
- Replaces 18W/26W/32W G24d & G24q CFL Lamps
- Ballast Bypass. Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Compatible with G24d / GX24d & G24q / GX24q installations
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Classified
- Rated for use in enclosed and open fixtures in dry or damp locations
- Non-Dimmable
- 5 Year No Compromise Warranty
Performance
| Watts | 15W |
| Color Temp | 3500K |
| Lumens | 1,900 lm |
| Efficacy | 123 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | 20 |
Dimensions
Weight: 0.6 lbs
Technical Specifications
Performance
Product Type
Compact
Input Wattage
15.5W
Lumens
1,900lm
Efficacy
123lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
42W G24d/G24q/Gx24q
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
3500K
Beam Angle
110°
Electrical
THD
20%
Power Factor
>0.9
Dimmable
Non-Dim
Input Voltage
120-277V AC
Operating Frequency
50/60Hz
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Construction
Shape
PLT-Horizontal
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Housing Finish
White
Lens Finish
Frosted
Installation
Base Type
2-Pin G24d
Installation Method
UL Type B, Ballast Bypass
Burning Position
Horizontal
Other
Technology EQ
CFL
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Classified, UL Recognized
Environment
Damp / Open
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
T10221(PLT-15.5-H-835-BYP)
