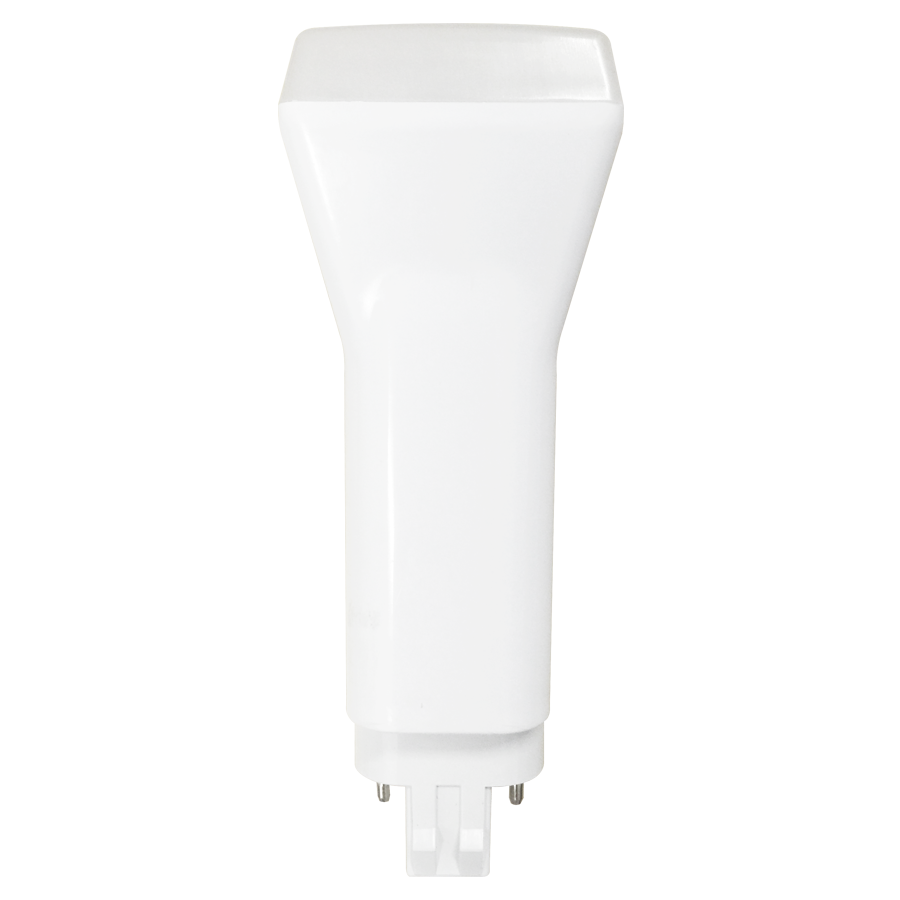

PLS-5.5-V-830-HYB
PLS-5.5-V-830-HYB
- Replaces 13W CFL Lamps
- Plug and Play on existing Magnetic CFL ballasts or can be wired directly to line voltage without need for an external driver or ballast
- Compatible with Gx23 base installations
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Classified
- Rated for use in enclosed and open fixtures in dry or damp locations
- Non-Dimmable
- 5 Year No Compromise Warranty
Performance
| Watts | 5W |
| Color Temp | 3000K |
| Lumens | 600 lm |
| Efficacy | 109 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 62mA |
| 208V | |
| 240V | |
| 277V | 20mA |
| Input Watts | 5.5W |
Dimensions
Weight: 0.2 lbs
Technical Specifications
Performance
Product Type
Compact
Input Wattage
5.5W
Lumens
600lm
Efficacy
109lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
13W Gx23
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
3000K
Beam Angle
120°
Electrical
THD
20%
Power Factor
>0.9
Dimmable
Non-Dim
Input Voltage
120-277 Type B (Type A dependent on ballast)
Operating Frequency
50/60Hz
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Construction
Shape
PLS-Vertical
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Housing Finish
White
Lens Finish
Frosted
Installation
Base Type
2-Pin Gx23-2
Installation Method
UL Type A with Magnetic Ballasts & UL Type B (Dual Mode)
Burning Position
Vertical
Other
Technology EQ
CFL
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Listed, UL Classified
Environment
Damp / Open
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
T10211(PLS-5.5-V-830-HYB)
