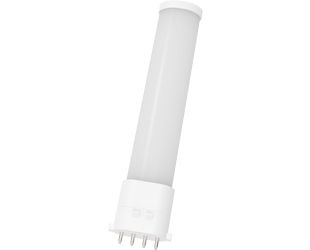

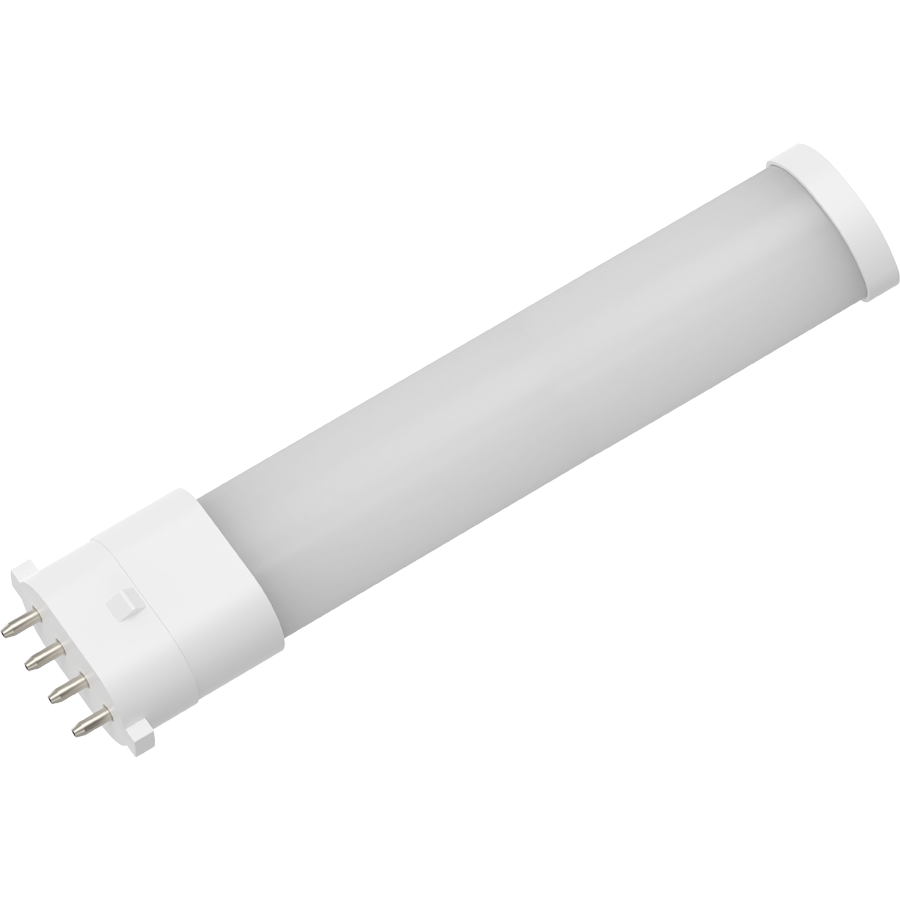

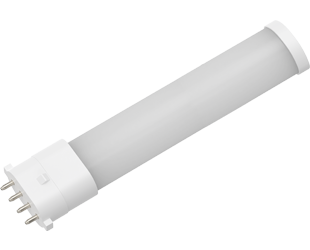

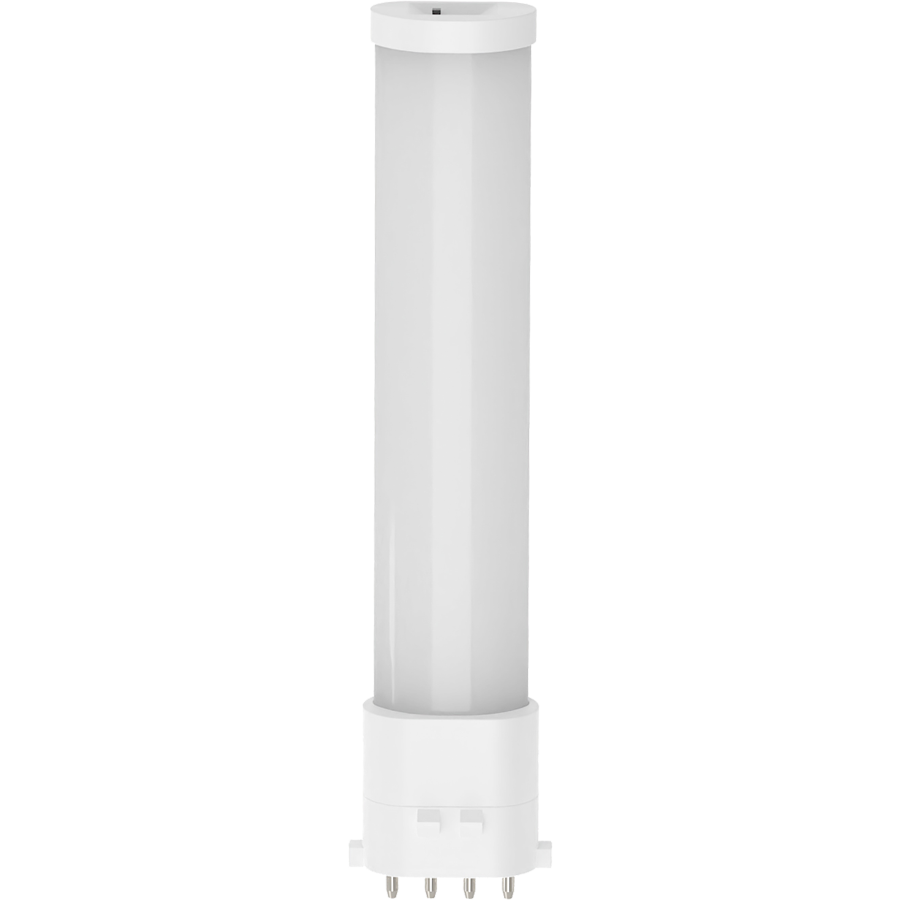

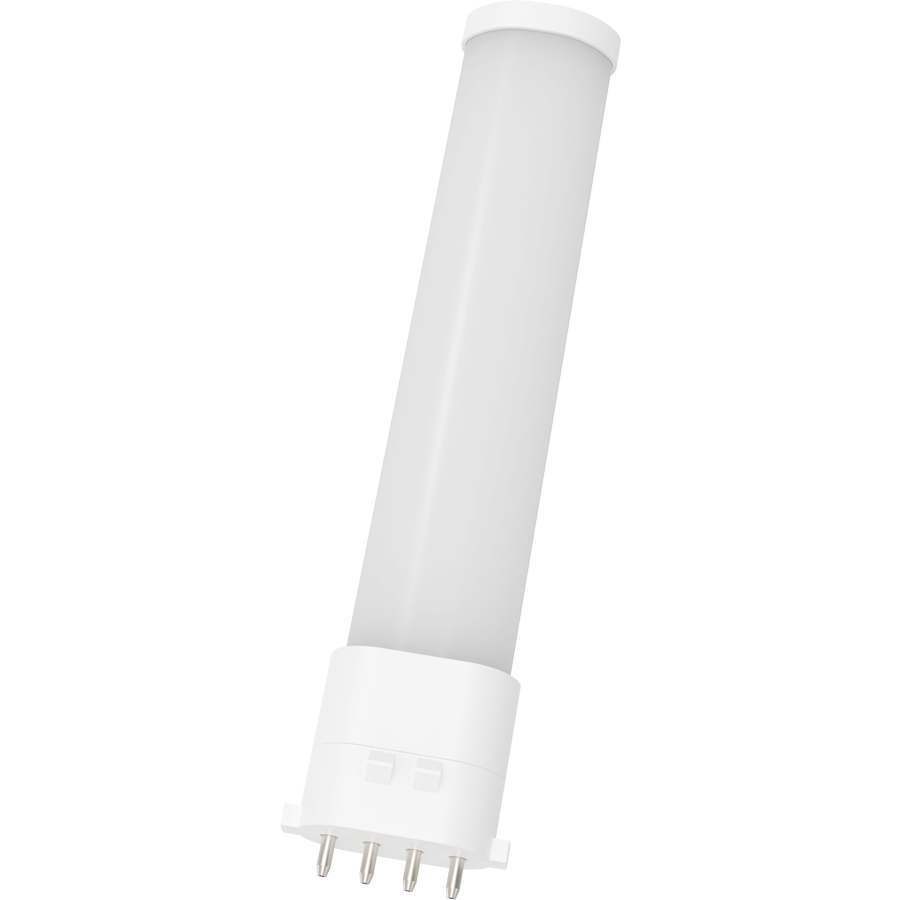

PLS-5.2-H-8FA-BYP-2GX7

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

PLS-5.2-H-8FA-BYP-2GX7

4 color temperatures in 1 SKU (2700/3000/3500/4000K)

7W-13W CFL lamps with G23 & GX23 (2-pin) base

Ballast Bypass-Install directly to line voltage

Frosted diffuser eliminates glare and pixelation

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	5W
Color Temp	2700/3000/3500/4000K
Lumens	580/590/600/620 lm
Efficacy	119.2/125.0/135.1/13 lm/W
Color Accuracy	80 CRI
L70 Lifespan

Input Voltage	N/A
Power Factor	N/A
Flicker	N/A
THDi	N/A

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.1 lbs

Technical Specifications

Performance

Product Type

PLS Bypass

Description

PLS (Short) 2-Pin & 4-Pin compact fluorescent replacements with CCT-Adjustability

Wattage Equivalency

13W CFL

Input Wattage

5.5W

Lumens (Nominal)

580/590/600/620

Efficacy

119.2/125.0/135.1/130.7

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current; 120-277V; 50/60 Hz 120V: 50mA, 208V: 29mA, 240V: 25mA, 277V: 22mA

THD

<20%

Power Factor

0.9

Dimmable

Input Voltage

120-277V

Operating Frequency

50/60Hz

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Flicker

50%

LED Characteristics

Beam Angle

120°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000K

Color Accuracy (CRI)

>80 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Installation Orientation

Horizontal

Base Type

2GX7

Construction

Shape

PLS

Finish

White

Endcap Material

Copper

Enclosure Material

Polycarbonate

Lens Finish

Frosted

Compliance

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures.
Suitable for use in open fixtures.

Certification Model Number

T20098(PLS-5.2-H-8FA-BYP-2GX7)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Not Lawful for Sales in California

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
