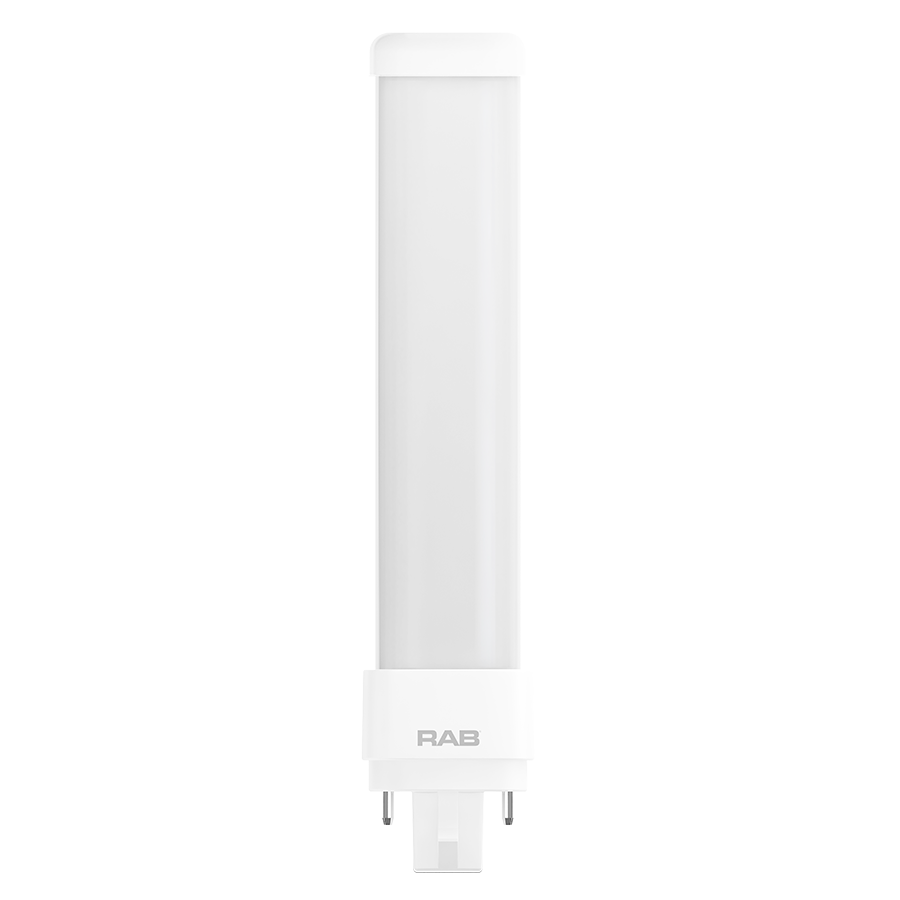

PLC-9.5-H-8FA-DIR
PLC-9.5-H-8FA-DIR
- Field Adjustable 3 CCTs in 1 SKU (3000K, 3500K, 4000K)
- Replacements for CFL 13W, 18W, and 26W G24q Lamps
- Ballast Compatible. Directly Compatible with Most Existing CFL Ballasts.
- Compatible with G24q / GX24q (4-pin CFL) installations
- Instant-on with no warmup, unlike CFLs
- Lasts 5x longer than compact fluorescent lamps
- Consumes up to 1/3 the energy of conventional CFL
- Base rotates, direct light where needed on Horizontal models
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Listed, DLC Listed
- Rated for use in enclosed and open fixtures in dry or damp locations
- 5 Year No Compromise Warranty
Performance
| Watts | 9W |
| Color Temp | 3000/3500/4000K |
| Lumens | 960/1020/1050 lm |
| Efficacy | 101/107/110 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | 20 |
Dimensions
Weight: 0.2 lbs
Technical Specifications
Performance
Product Type
Compact
Input Wattage
9.5W
Lumens
960/1020/1050lm
Efficacy
101/107/110lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
18W/26W/32W G24q
Electrical
THD
20%
Power Factor
>0.9
Dimmable
Not suggested for dimming applications
Input Voltage
120-277V AC
Operating Frequency
50/60Hz
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
3000/3500/4000K
Construction
Shape
PLC-Horizontal
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Housing Finish
White
Lens Finish
Frosted
Installation
Base Type
4-Pin G24q
Installation Method
UL Type A, Plug and Play
Burning Position
Horizontal
Other
Technology EQ
CFL
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Listed
Environment
Damp / Open
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
T10198(PLC-9.5-H-8FA-DIR)
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
