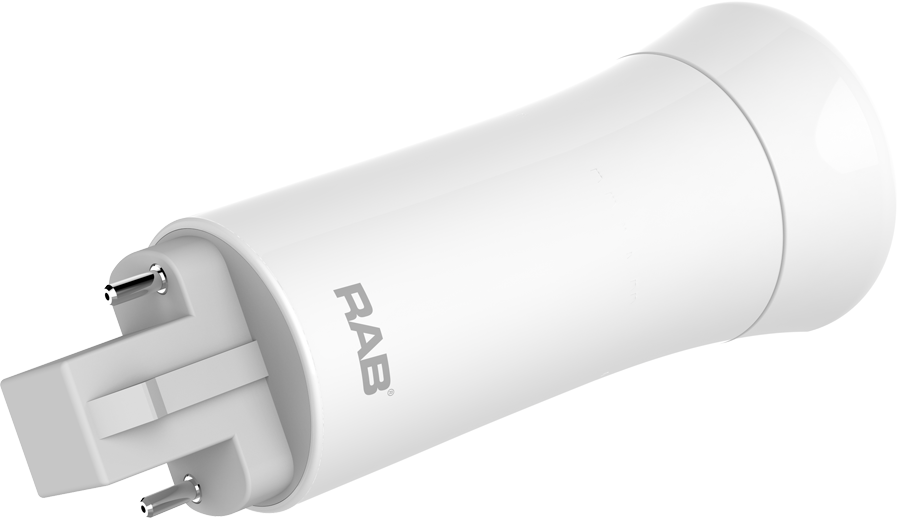

PLC-9-V-827-BYP
PLC-9-V-827-BYP
- Replaces 18W/26W/32W G24d & G24q CFL Lamps
- Ballast Bypass. Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Compatible with G24d / GX24d & G24q / GX24q installations
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Classified
- Rated for use in enclosed and open fixtures in dry or damp locations
- Non-Dimmable
- 5 Year No Compromise Warranty
Performance
| Watts | 9W |
| Color Temp | 2700K |
| Lumens | 900 lm |
| Efficacy | 100 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | N/A |
| Flicker | N/A |
| THDi | N/A |
Dimensions
Weight: 0.3 lbs
Technical Specifications
Performance
Product Type
Compact
Input Wattage
9W
Efficacy
100lm/W
L70 Lifespan
50,000 Hours
Construction
Shape
PLC
Finish
Frosted
For Use Outdoors in Open Fixtures
No
LED Characteristics
Color Temperature
2700K So ft White
Color Accuracy (CRI)
82 CRI
Installation
Base Type
G24d/G24q
Installation Type
Type B, Ballast Bypass
Installation Orientation
Vertical
Electrical
Operating Frequency
50/60Hz
Input Voltage
120-277V AC
Compliance
California Energy Commission (CEC) Status
Lawful for Sales in California
Application
Suitable for damp locations and totally enclosed fixtures.
