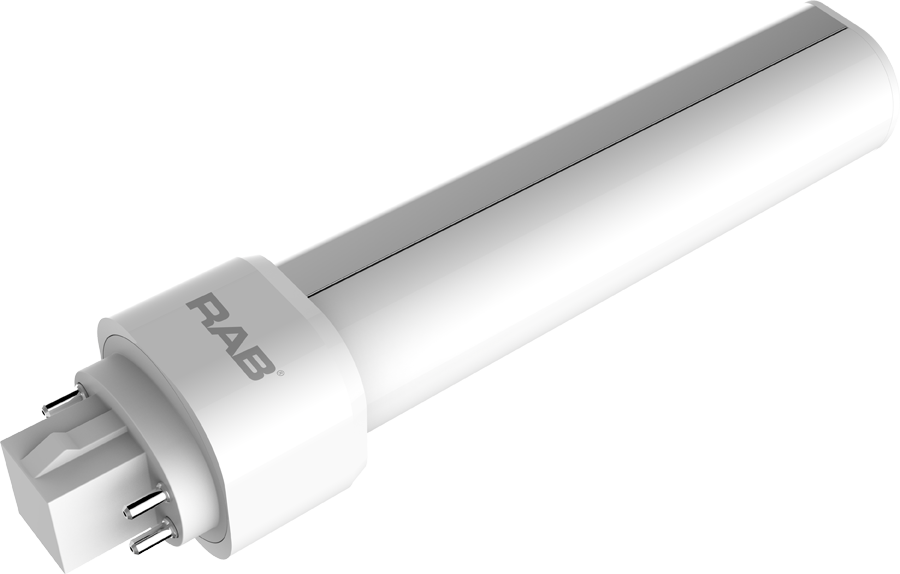

PLC-9-H-830-DIR

Spec Sheet Dimmer Compatibility List Ballast Compatibility List LM79 Instructions FCC Caution Spec Sheet

PLC-9-H-830-DIR

Replaces CFL 18W, 26W, and 32W G24q Lamps

Ballast Compatible. Directly Compatible with Most Existing CFL Ballasts.

Compatible with G24q / GX24q (4-pin CFL) installations

50,000 hour Lifespan

Environmentally friendly, no mercury used

UL Listed, DLC Listed

Rated for use in enclosed and open fixtures in dry or damp locations

5 Year No Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp	3000K
Lumens	1,050 lm
Efficacy	116.7 lm/W
Color Accuracy	82 CRI
L70 Lifespan	50,000 Hours

Type
120V
208V
240V
277V
Input Watts	9W

Dimensions

Weight: 0.2 lbs

Technical Specifications

Performance

Product Type

Compact

Input Wattage

Wattage Equivalency

26W Fluorescent

Lumens

950lm

Efficacy

106lm/W

L70 Lifespan

50,000 Hours

Electrical

THD

<20%

Power Factor

Ballast Dependent

Dimmable

Not suggested for dimming applications

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Input Voltage

Ballast Dependent

Operating Frequency

Ballast Dependent

Construction

Bulb Shape

PLC

Finish

Frosted

For Use Outdoors in Open Fixtures

LED Characteristics

Color Temperature

3000K Warm White

Color Accuracy (CRI)

82 CRI

Installation

Base Type

G24q

Installation Type

Type A, Plug and Play

Installation Orientation

Horizontal

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Listed

Yes

Certification Model Number

PLC-9-H-830-DIR

California Energy Commission (CEC) Status

Lawful for Sales in California

Application

Suitable for damp locations and totally enclosed fixtures.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PHD4PX3H
