PLC-9-H-830-BYP

Spec Sheet Photometrics Report Instructions FCC Caution Spec Sheet

PLC-9-H-830-BYP

Replaces 18W/26W/32W G24d & G24q CFL Lamps

Ballast Bypass. Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Compatible with G24d / GX24d & G24q / GX24q installations

50,000 hour Lifespan

Environmentally friendly, no mercury used

UL Classified

Rated for use in enclosed and open fixtures in dry or damp locations

Non-Dimmable

5 Year No Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp	3000K
Lumens	950 lm
Efficacy	105.6 lm/W
Color Accuracy	82 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277
Power Factor	0.9
Flicker	N/A
THDi	N/A

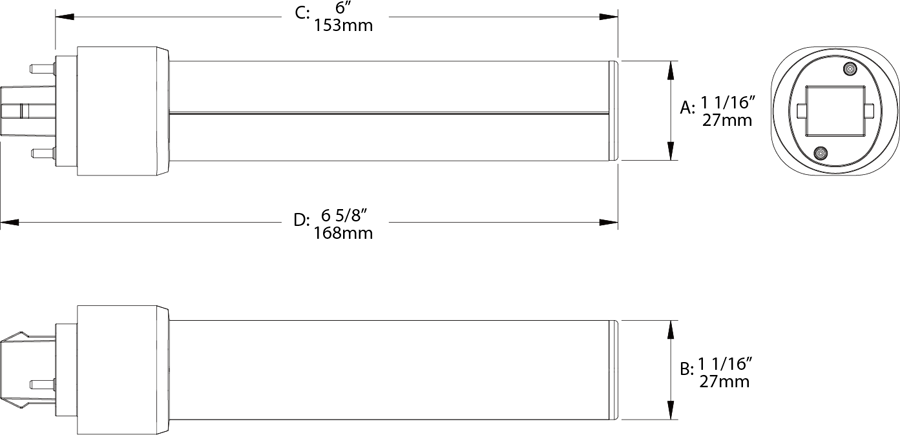

Dimensions

Weight: 0.2 lbs

Technical Specifications

Performance

Product Type

Compact

Input Wattage

Wattage Equivalency

26W Fluorescent

Lumens

950lm

Efficacy

106lm/W

L70 Lifespan

50,000 Hours

Construction

Shape

PLC

Finish

Frosted

For Use Outdoors in Open Fixtures

LED Characteristics

Color Temperature

3000K Warm White

Color Accuracy (CRI)

82 CRI

Installation

Base Type

G24d

Installation Type

Type B, Ballast Bypass

Installation Orientation

Horizontal

Electrical

THD

<20%

Power Factor

0.9

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Dimmable

Input Voltage

120-277V AC

Operating Frequency

50/60Hz

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Recognized

Yes

UL Classified

Yes

California Energy Commission (CEC) Status

Lawful for Sales in California

Application

Suitable for damp locations and totally enclosed fixtures.
