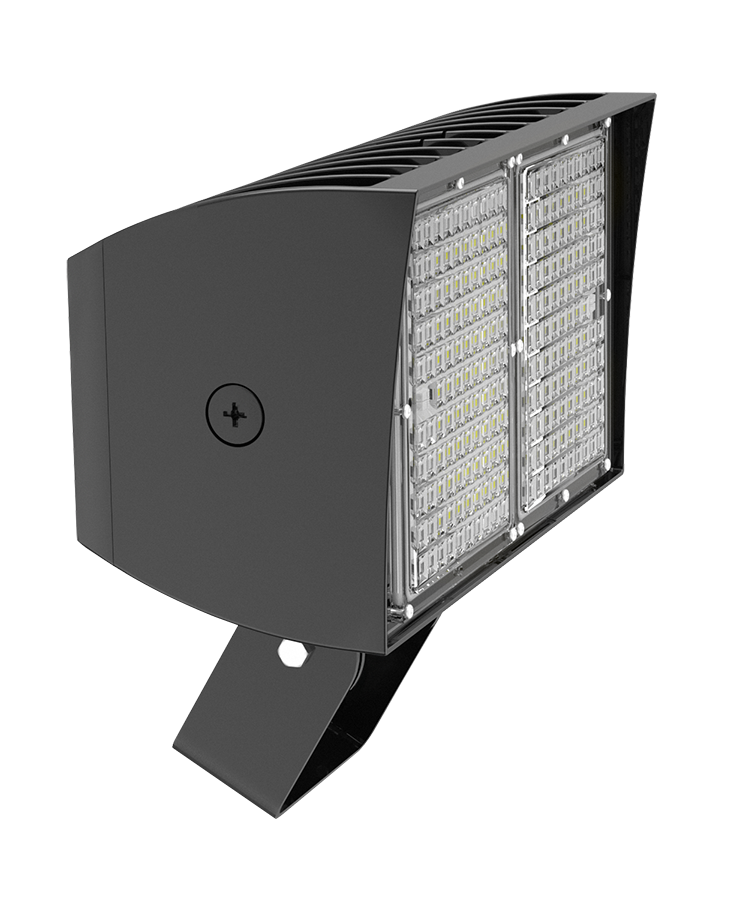

PIPXL100T/480/D10
PIPXL100T/480/D10
- Ultra-high efficiency
- DLC Premium
- 0-10V Dimming, standard
- 60,000-Hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 100W |
| Color Temp | 5000K (Cool) |
| Lumens | 15,238 lm |
| Efficacy | 156.9 lm/W |
| Color Accuracy | 74 CRI |
| L70 Lifespan | 60,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 97.1W |

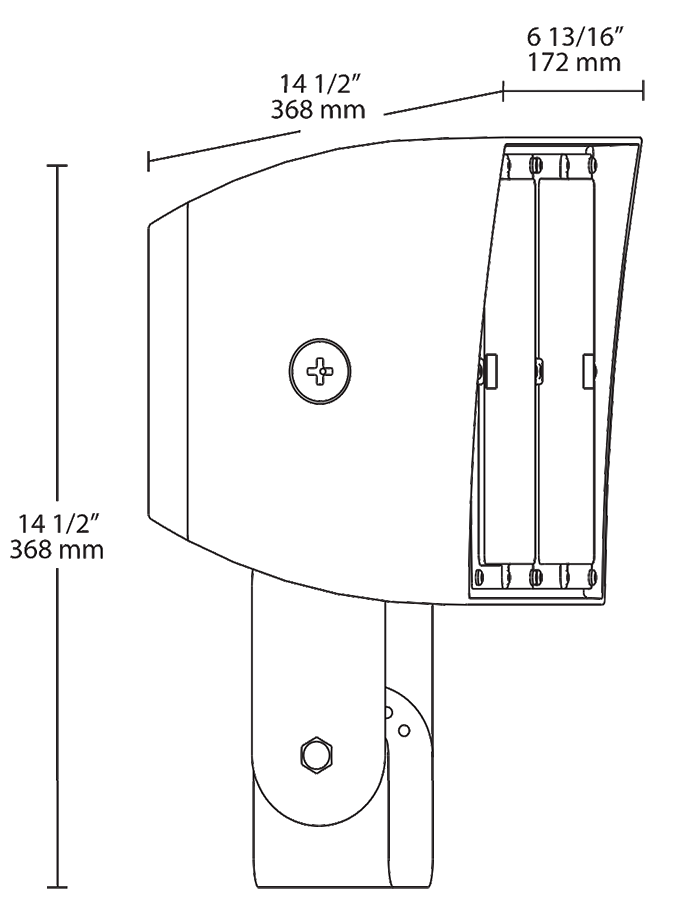

Dimensions
Weight: 20.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Constant Current, Class 2, 480V, 50/60Hz, 480V: 0.21A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.35% at 480V
Power Factor
99.1% at 480V
Surge Protection
4 kV
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
