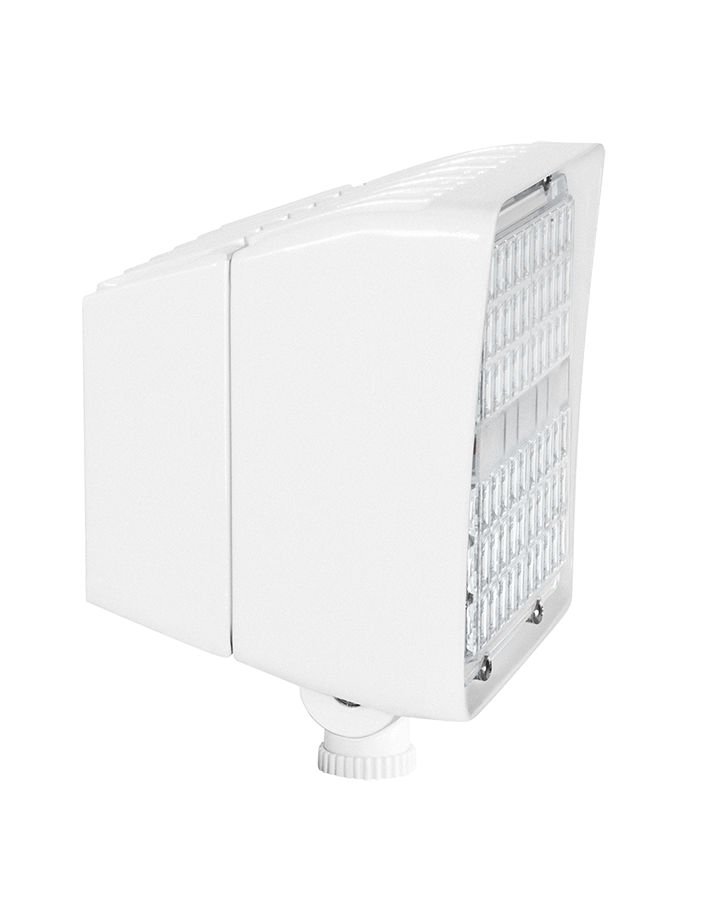

PIP45NW/D10
PIP45NW/D10
- 0-10V Dimming, standard
- Replaces 150W MH
- 60,000-Hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 45W |
| Color Temp | 4000K (Neutral) |
| Lumens | 6,636 lm |
| Efficacy | 132.5 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 60,000 Hours |
| Type | Constant Current |
| 120V | 0.42A |
| 208V | 0.22A |
| 240V | 0.19A |
| 277V | 0.19A |
| Input Watts | 50.1W |
Dimensions
Weight: 4.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Constant Current, Class 2, 50/60 Hz, 2kV, 120 - 277VAC, 120V: 0.42A, 208V: 0.22A, 240V: 0.19A, 277V: 0.19A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
2.81% at 120V, 6.88% at 277V
Power Factor
99.9% at 120V, 95.9% at 277V
Surge Protection
+/- 1 kV line to line (differential mode)/ +/- 2 kV line to common mode ground (tested to secondary ground) on AC power port, +/- 0.5 kV for outdoor cables
