PIP30YW/D10
PIP30YW/D10
- 60,000-hour LED lifespan
- Standard 0-10V dimming driver
- 5-Year, limited warranty
Performance
| Watts | 30W |
| Color Temp | 3000K (Warm) |
| Lumens | 4,334 lm |
| Efficacy | 143 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 60,000 Hours |
| Type | Constant Current |
| 120V | 0.26A |
| 208V | 0.15A |
| 240V | 0.13A |
| 277V | 0.11A |
| Input Watts | 30.3W |

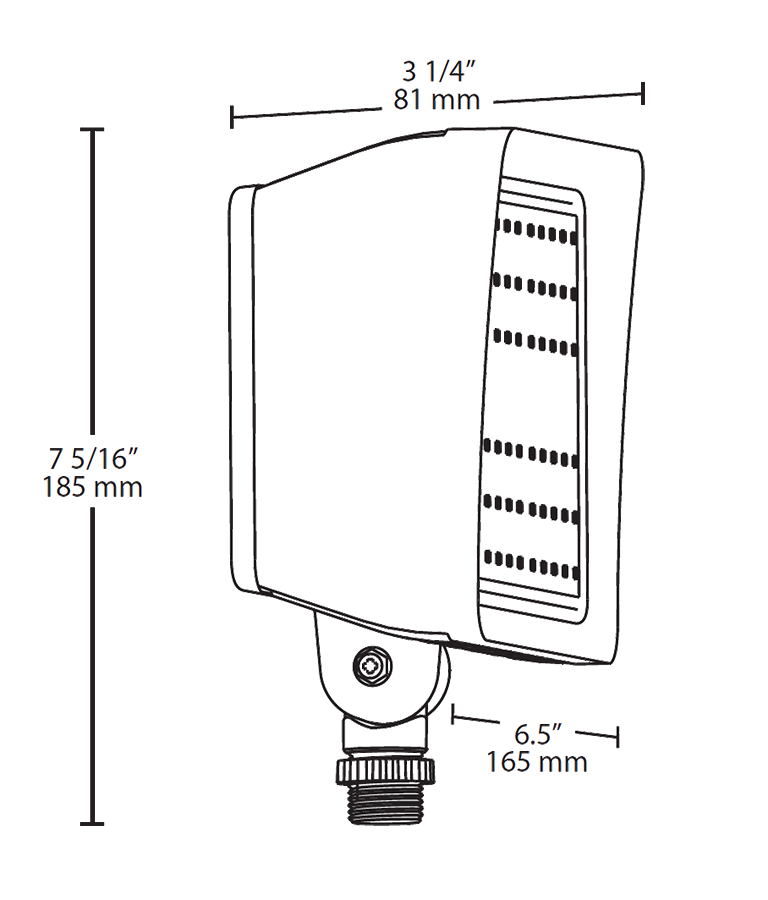

Dimensions
Weight: 3.7 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Constant Current, Class 2, 50/60 Hz, 2kV, 120 - 277VAC, 120V: 0.26A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.37% at 120V, 6.98% at 277V
Power Factor
99.6% at 120V, 96.6% at 277V
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Performance
Lifespan
60,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
