OUTLET15/LCB

120V, 20A Resistive Load Rating

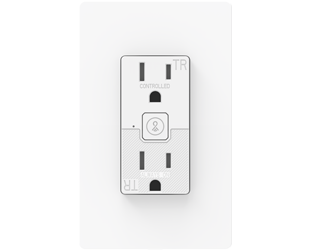

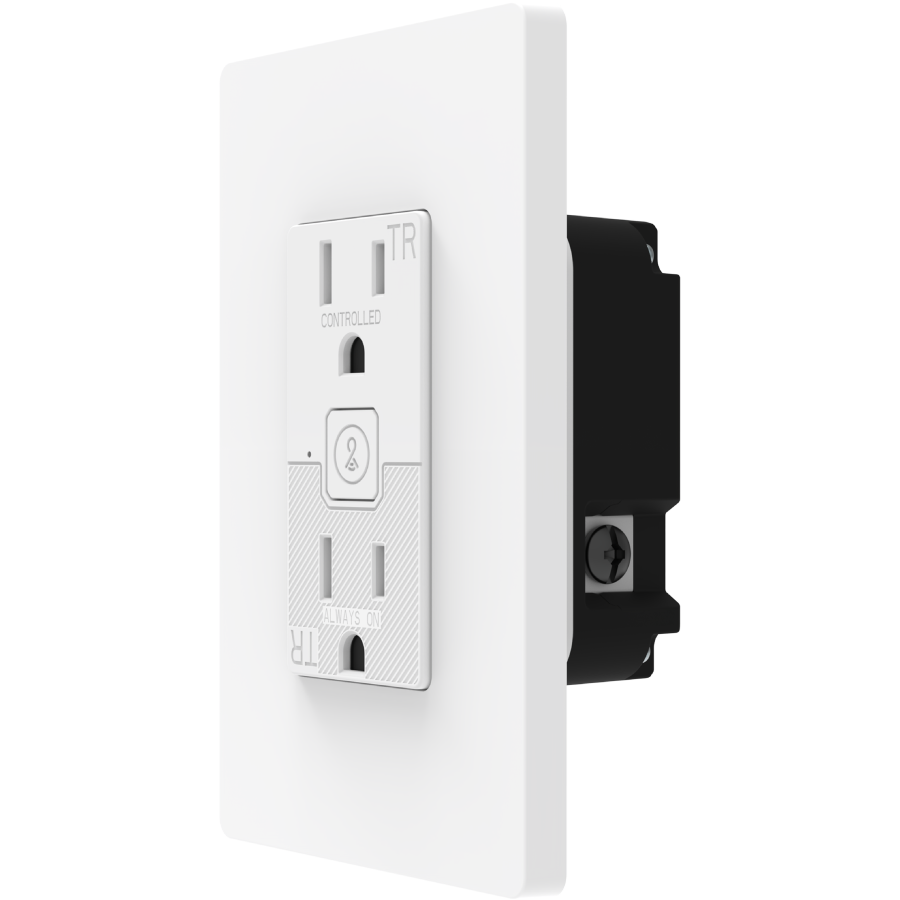

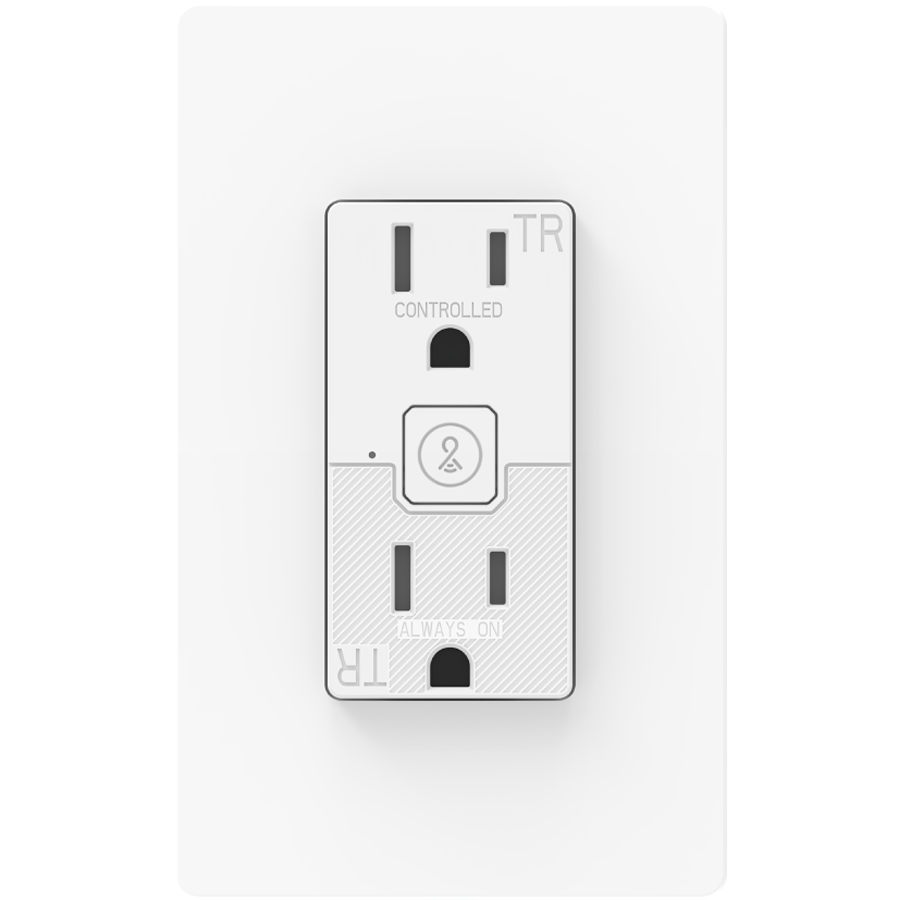

Top receptacle controlled with Lightcloud Blue, bottom receptacle always on

Wirelessly configure schedules and occupancy control using the mobile app

Power monitoring available on both receptacles

2-Year limited warranty

View Technical Specs

View Price & Availability

Dimensions

Weight: 0.3 lbs

Technical Specifications

Lightcloud

Gateway Required

Communication Protocol

Bluetooth®

Range

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the network. Building materials such as brick, concrete, and steel construction or heavy vegetation, bushes or trees may require additional Lightcloud Blue devices to extend around an obstruction.

Integration

Open API, available from any Lightcloud Blue account.

Performance

Product Type

Smart Outlet

Description

Smart, split-control outlets with one always-on and one app-controlled receptacle. Easily add scheduling, occupancy automation, and power monitoring while meeting code requirements—available in 15A and 20A.

Load Switching Capacity

1800W

Amperage

15A

Lifespan

15,000 Hours

Electrical

Input Voltage

125V

Operating Frequency

60 Hz

Input Current @ 120V

15A

Installation

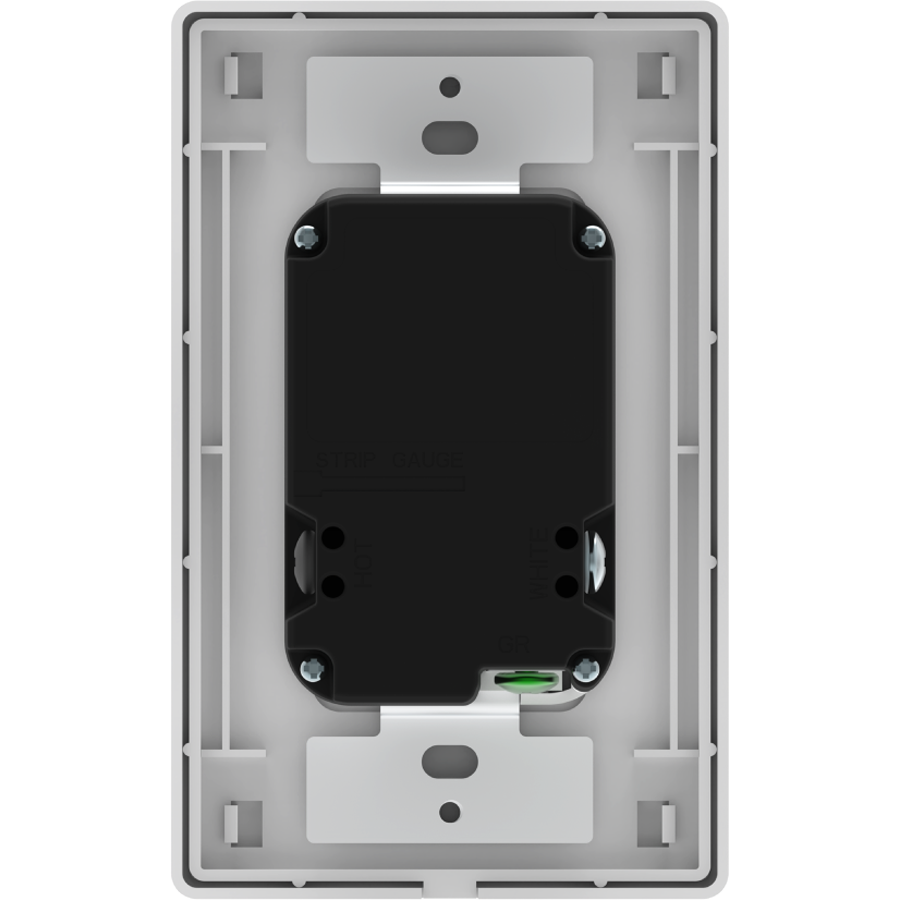

Terminal Wire

14 AWG

Mounting

Requires a U.S. wallbox with 2-inch depth (recommended) and a minimum depth of 1.46 inches. For use in single or multi-gang applications.

Construction

Enclosure Material

Polycarbonate, Copper, Iron

Compliance

Listings

UL Listed

Environment

Suitable for use indoors in dry and damp environments.

DLC NLC Listed

This system is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Certification Model Number

OUTLET15/LCB

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

2-Year Limited Warranty

The RAB 2-year limited warranty covers defects in materials under normal use and installation conditions. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
