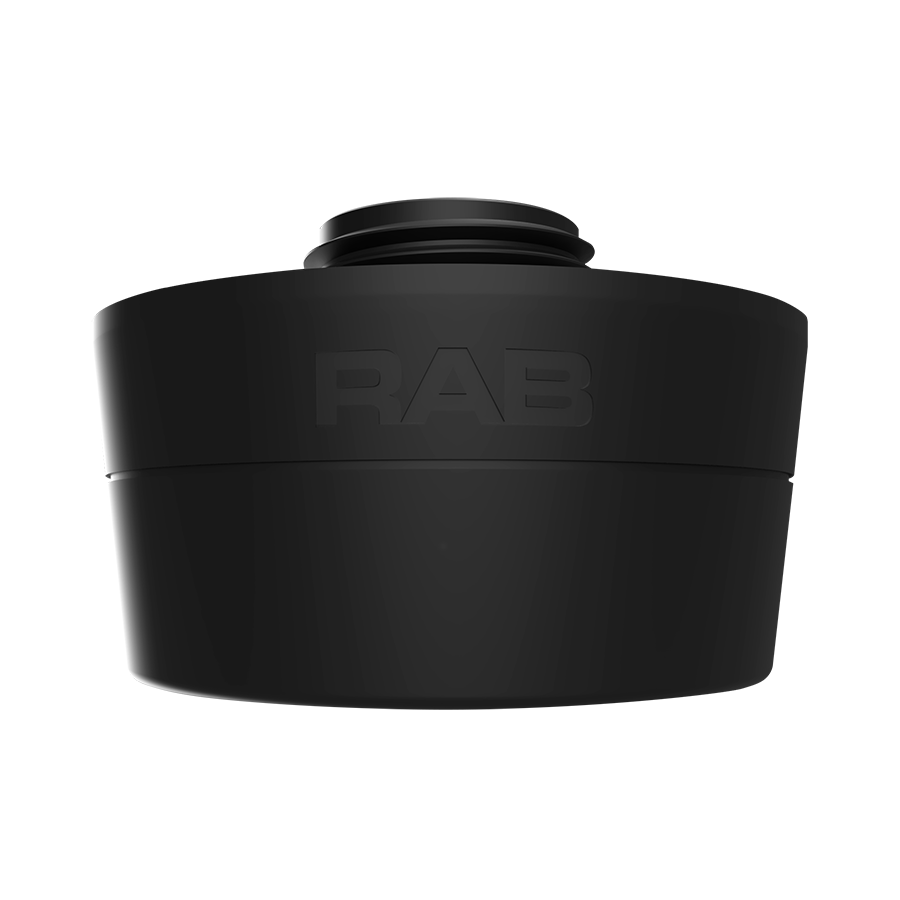

MVS50B
MVS50B
- For use in indoor and outdoor applications in dry, damp or wet environments
- Compatible with 0-10V dimming fixtures with auxiliary power supply
- Integrated dual-technology motion and daylight sensor.
- Adjustable sensor settings using MSR1 remote (sold separately)
- Compatible with various fixtures (high bays, washdown, strips, wraps, wall packs, area, etc.)
Dimensions
Technical Specifications
Performance
Product Type
Low Voltage Occupancy Sensor
Description
Line voltage screw-in sensor, motion detection and daylight sensing.
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Input Voltage
12V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
30mA
Operating Temperature
-4°F to 140°F (-20°C to 60°C)
Sensor Settings
Sensor Connection Type
Pogo pin
Max Mounting Height
50 ft
Detection Range
50 ft diameter mounted at 50 ft
Sensor Technology
Microwave (MVS)
Default Setting
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight: Disabled
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight: Disabled
Adjustable Sensor Settings?
Yes, using the MSR1 Remote (sold separately)
Standby to dim: 10%/20%/30%/50%
Standby time: 0s/10s/30s/1min/5min/10min/30min/60min/+∞
Standby to dim: 10%/20%/30%/50%
Standby time: 0s/10s/30s/1min/5min/10min/30min/60min/+∞
Daylight Threshold
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Construction
Shape
Round
Finish
Black
Enclosure Material
Plastic
Compliance
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP66
Certification Model Number
MVS50B
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
Compatible Accessories
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
