MAB - RAB Lighting

MAB

Spec Sheet Spec Sheet

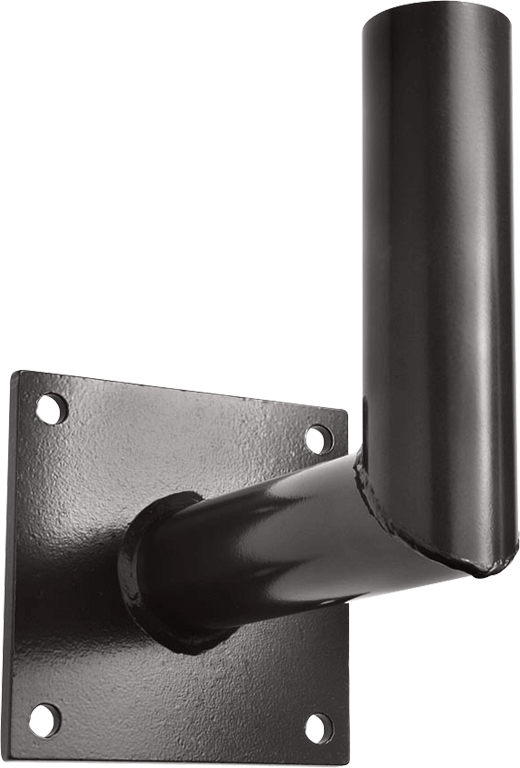

MAB large main

MAB

Easy, secure floodlight mounting

Double Reinforced weld joints

View Technical Specs

View Price & Availability

Dimensions

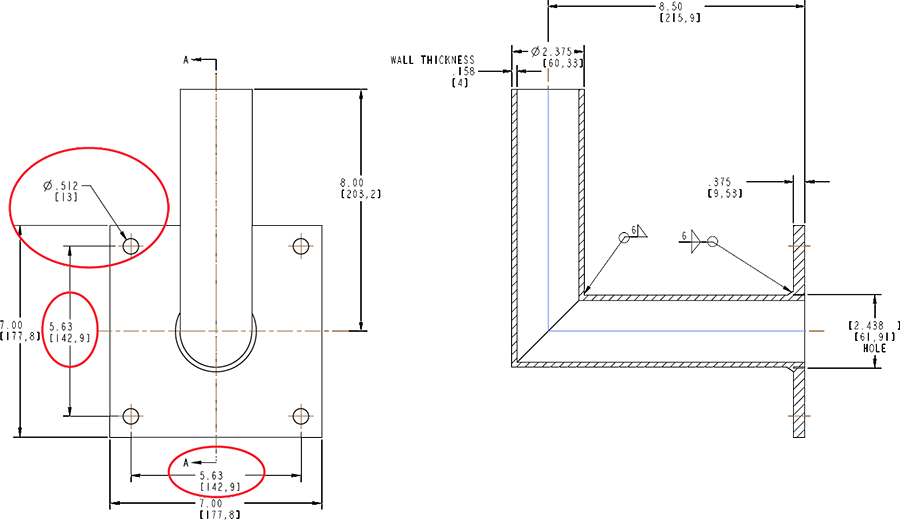

Link to Dimension Drawing

Weight: 10.7 lbs

Technical Specifications

Construction

Finish

Weather resistant polyester powder, bronze

Bullhorns

1 Tenon for slip fitters. Right angle bracket. Bullhorns fit 2 3/8" (6cm) O.D. tenons and accommodate 2 3/8" (6cm) slip fitters. Steel tubing.150" and.200" thick welded with (4) 3/8" bolts for securing to pole.

Slipfitters & Wall Brackets

3/16" thick steel with 1/2" nuts and bolts

Maximum Weight

90 lbs

EPA Maximum Capacity

4.0 per arm
